Rear Seat Beam Replacement

Rear Seat Beam Replacement

NOTE: Take care not to scratch the body

1. Remove these items:

- Rear door sill trim
- Rear seat-back
- Rear seat cushion
- Rear seat belt buckle
- Cargo area side trim panel Interior Trim Removal/Installation - Cargo Areas

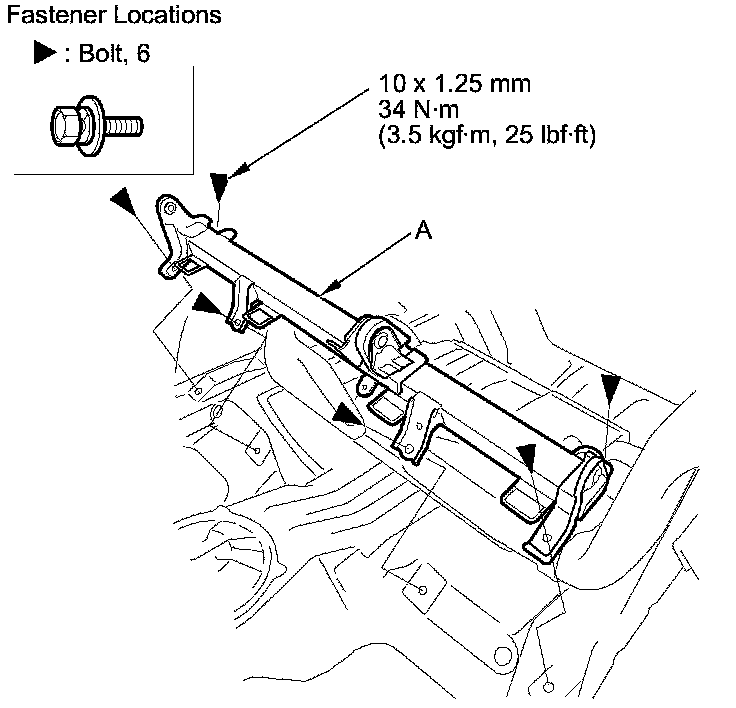

2. Remove the bolts, then remove the rear seat-back beam (A).






3. Install the beam in the reverse order of removal.
