Front Floor Undercover Replacement

Front Floor Undercover Replacement

Left side

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

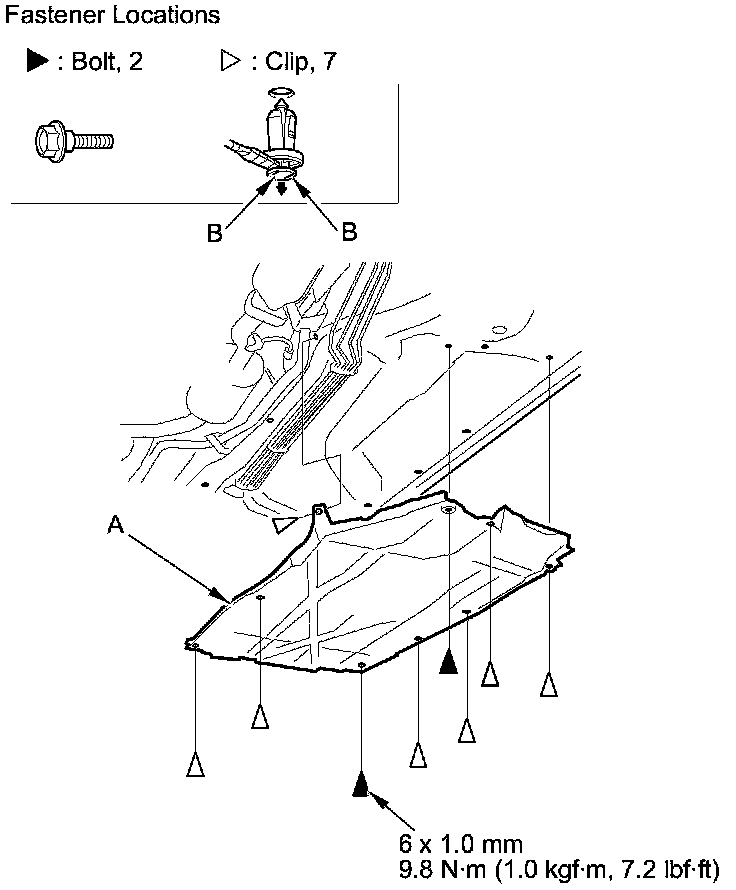

1. Remove the bolts and clips, then remove the left front floor undercover (A).

NOTE: To release the clips, pry up on the center pin at the notch (B).





2. Install the left front floor undercover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.

Right side

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

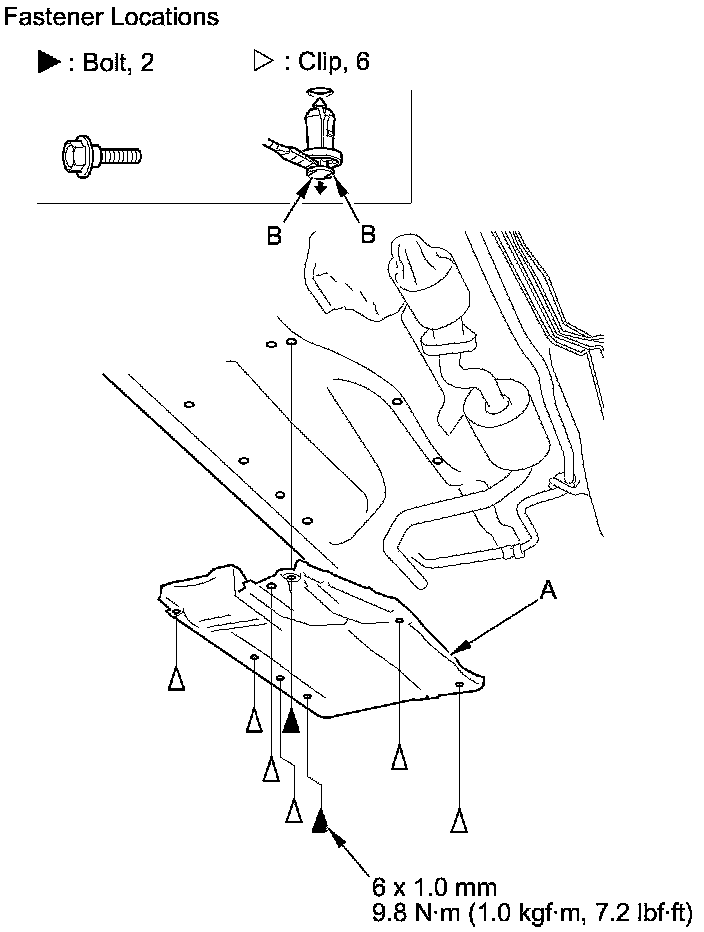

1. Remove the bolts and clips, then remove the right front floor undercover (A).

NOTE: To release the clips, pry up on the center pin at the notch (B).





2. Install the right front floor undercover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
