Intermediate Shaft Removal (A/T)

Intermediate Shaft Removal

1. Drain the transmission fluid. Reinstall the drain plug using a new sealing washer ATF Replacement.

2. Remove the right driveshaft Driveshaft Removal.

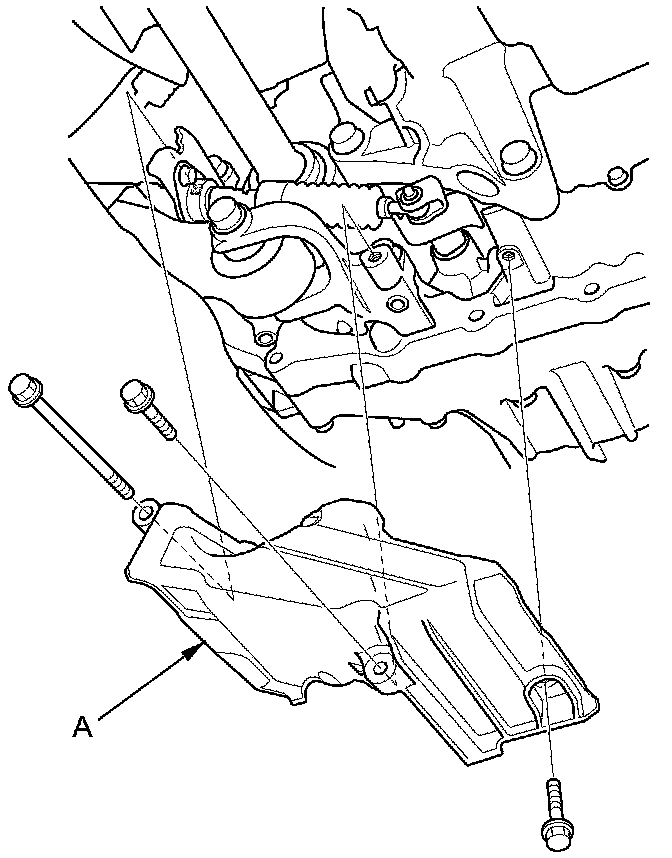

3. Remove the shift cable cover (A).

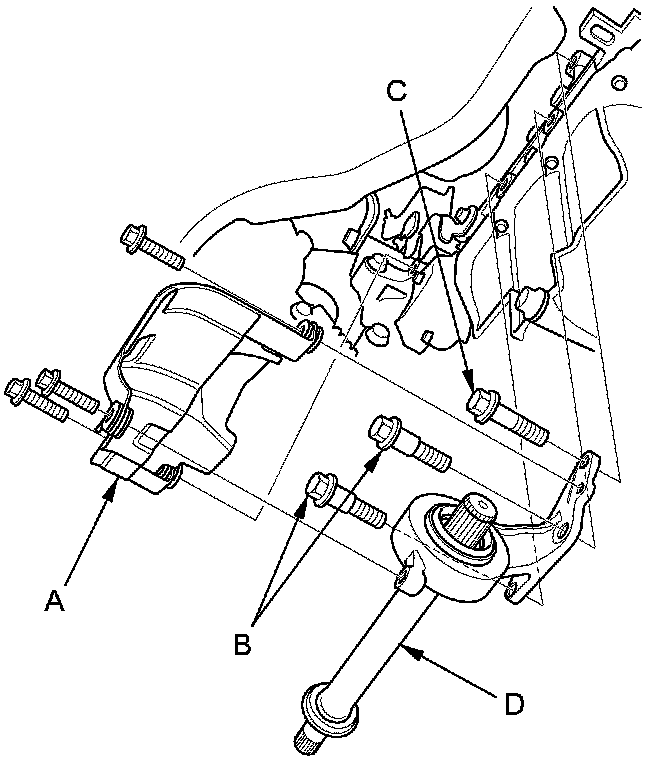

4. Remove the heat shield (A).





5. Remove the two dowel bolts (B) and the flange bolt (C).

6. Remove the intermediate shaft (D) from the differential. Hold the intermediate shaft horizontally until it is clear of the differential to prevent damaging the oil seal.
