Intermediate Shaft Installation (A/T)




Intermediate Shaft Installation

1. Clean the areas where the intermediate shaft contacts the differential thoroughly with solvent or brake cleaner, and dry them with compressed air.

NOTE: Do not wash the rubber parts with solvent.

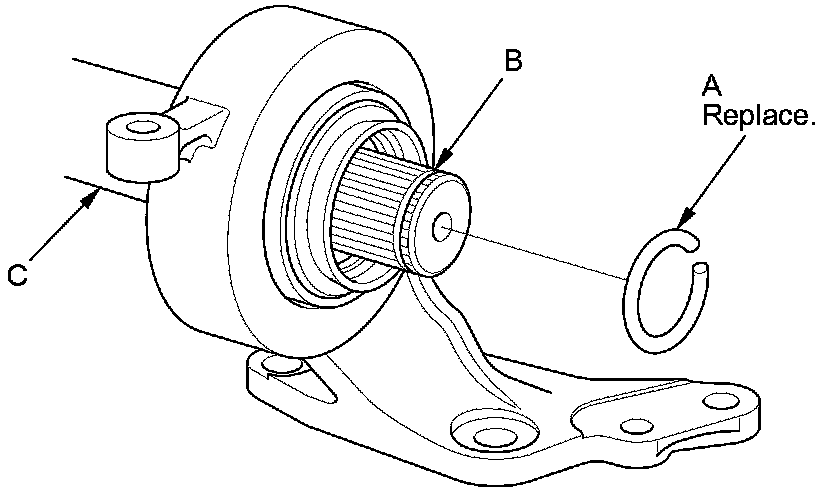

2. Install a new set ring (A) onto the set ring groove (B) of the intermediate shaft (C).






3. Insert the intermediate shaft (A) into the differential correctly.

NOTE: Insert the intermediate shaft carefully to prevent damaging the oil seal.

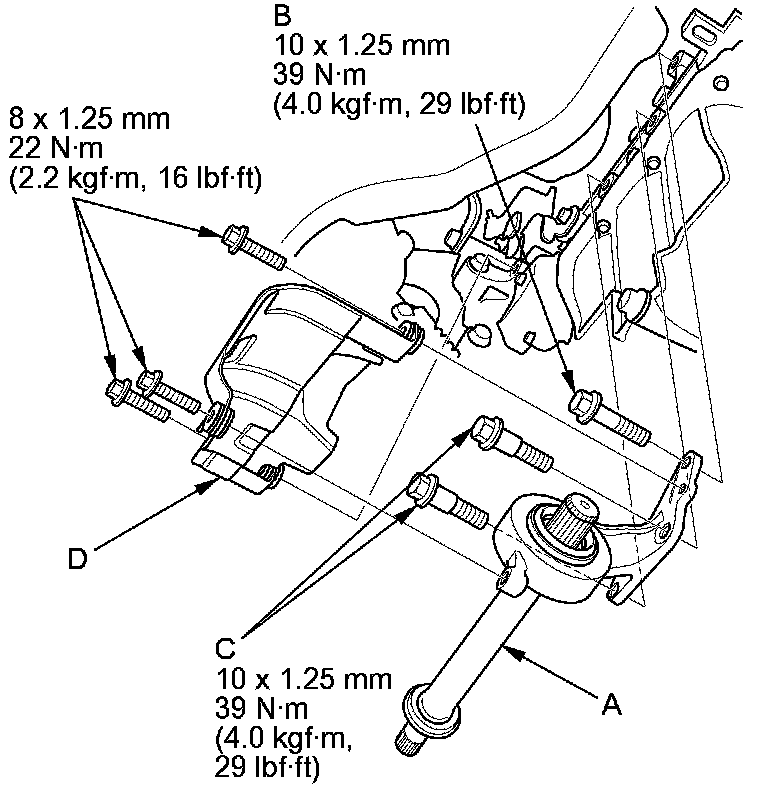

4. Install the flange bolt (B) and the two dowel bolts (C).

5. Install the heat shield (D).

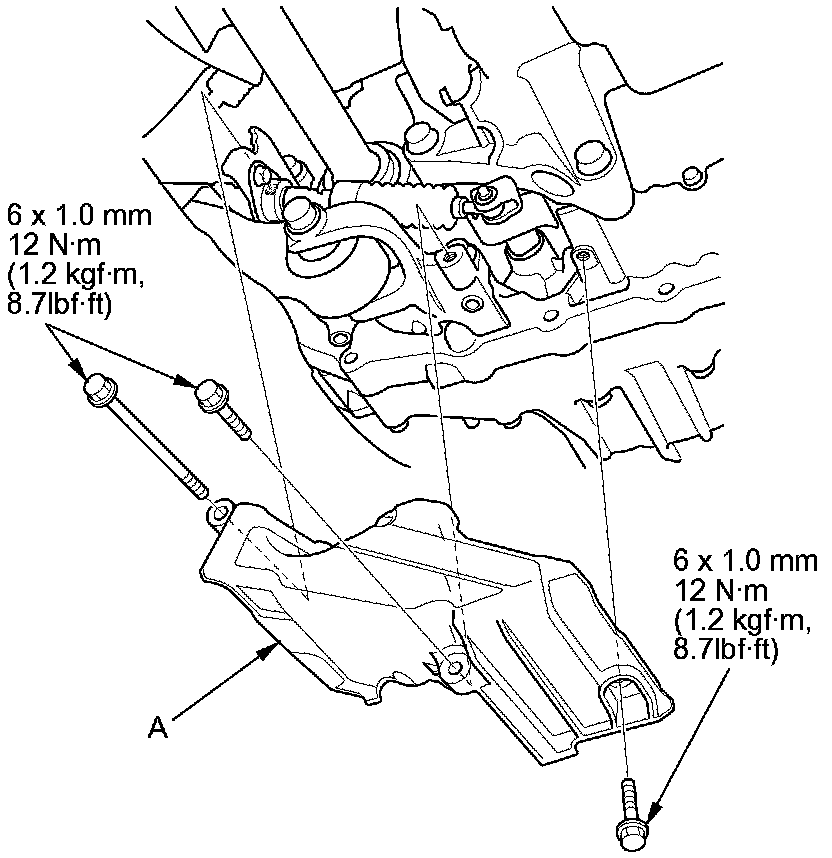

6. Install the shift cable cover (A).





7. Install the right driveshaft Driveshaft Installation.

8. Refill the transmission with the recommended transmission fluid ATF Replacement.

9. Check the wheel alignment, and adjust it if necessary Service and Repair.

10. Test-drive the vehicle.
