Driveshaft Dynamic Damper Replacement

Driveshaft Dynamic Damper Replacement

1. Remove the inboard joint Driveshaft Disassembly.

2. Remove the dynamic damper band Driveshaft Disassembly.

3. Remove the dynamic damper (A).

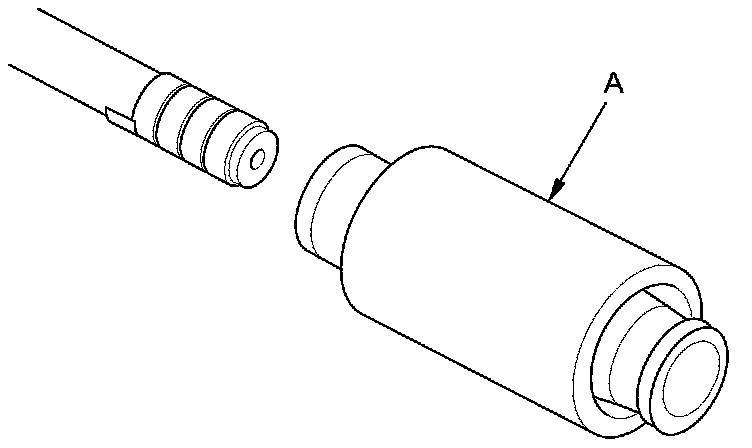

Dynamic damper type 1

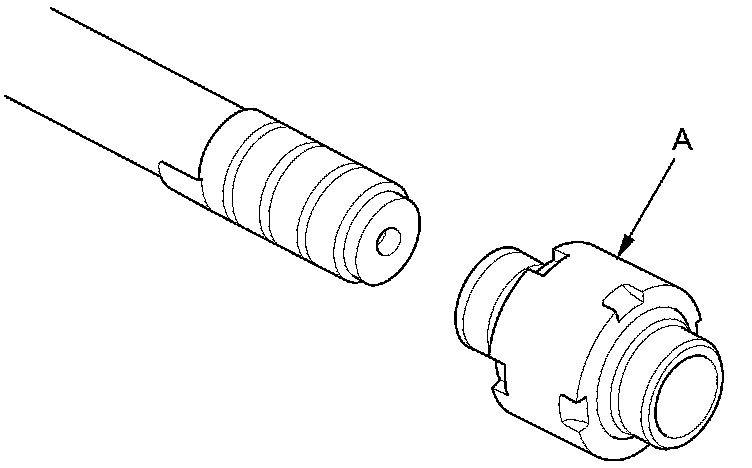

Dynamic damper type 2





4. Install a new dynamic damper.

NOTE: Be careful not to swap the dynamic dampers. Check the type of dynamic damper by its shape.

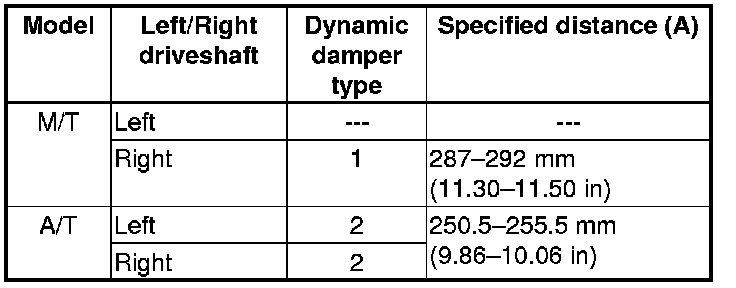

5. Adjust the specified distance (A) between the outboard joint side and the dynamic damper edge.

NOTE: Check the type of dynamic damper by its shape.

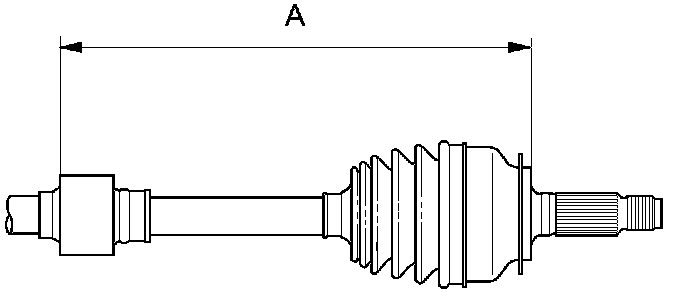

Dynamic damper type 1

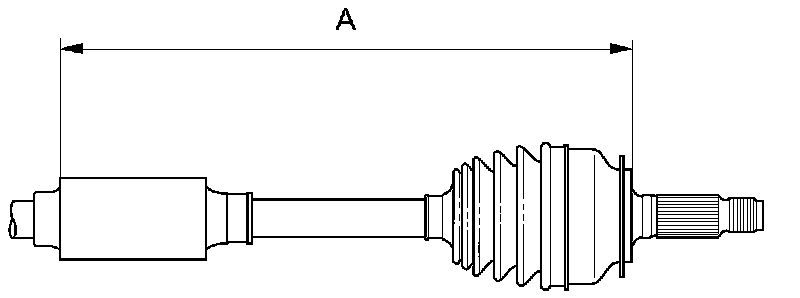

Dynamic damper type 2









6. Install a new dynamic damper band Driveshaft Reassembly.

7. Install the inboard joint Driveshaft Reassembly.
