Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2010
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
>>

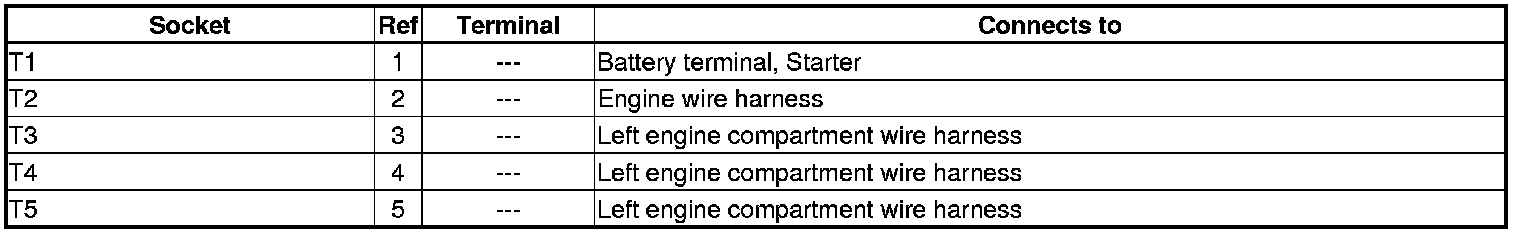

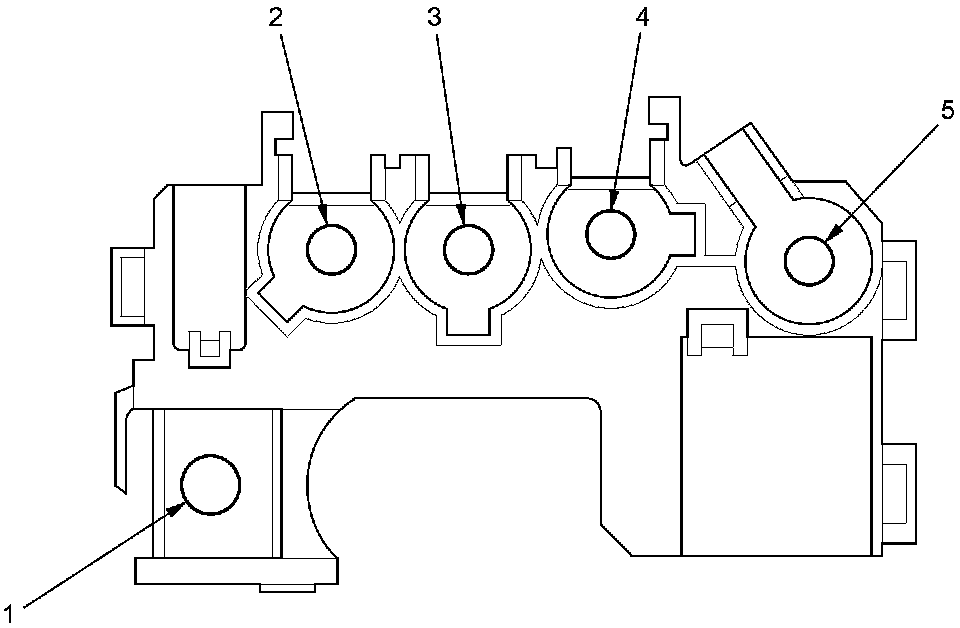

Battery Terminal Fuse Box Connector Locations
Battery Terminal Fuse Box Connector Locations
Battery Terminal Fuse Box Connector Locations
Battery Terminal Fuse Box
