Starter Cable, Engine, Battery and Transmission Ground Cables




Connector and Harness Locations

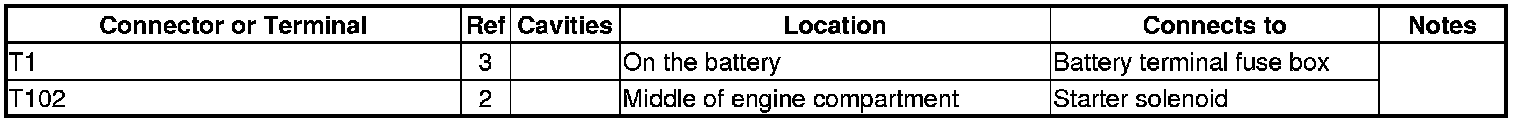

Starter Cable






Battery Ground Cable

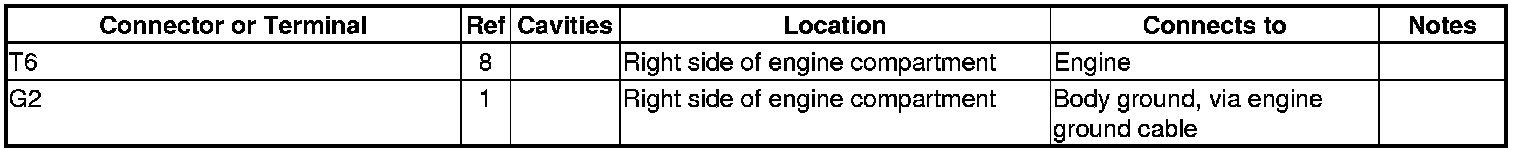

Engine Ground Cable

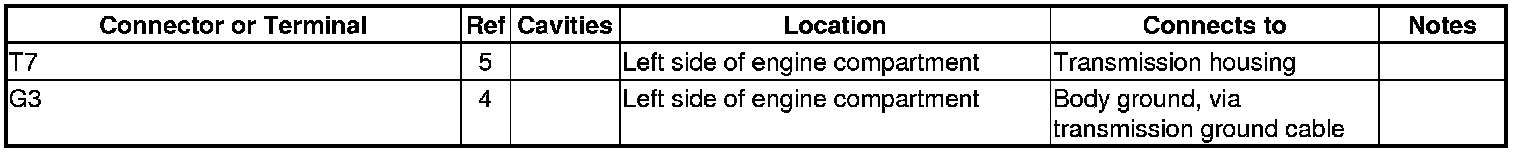

Transmission Ground Cable

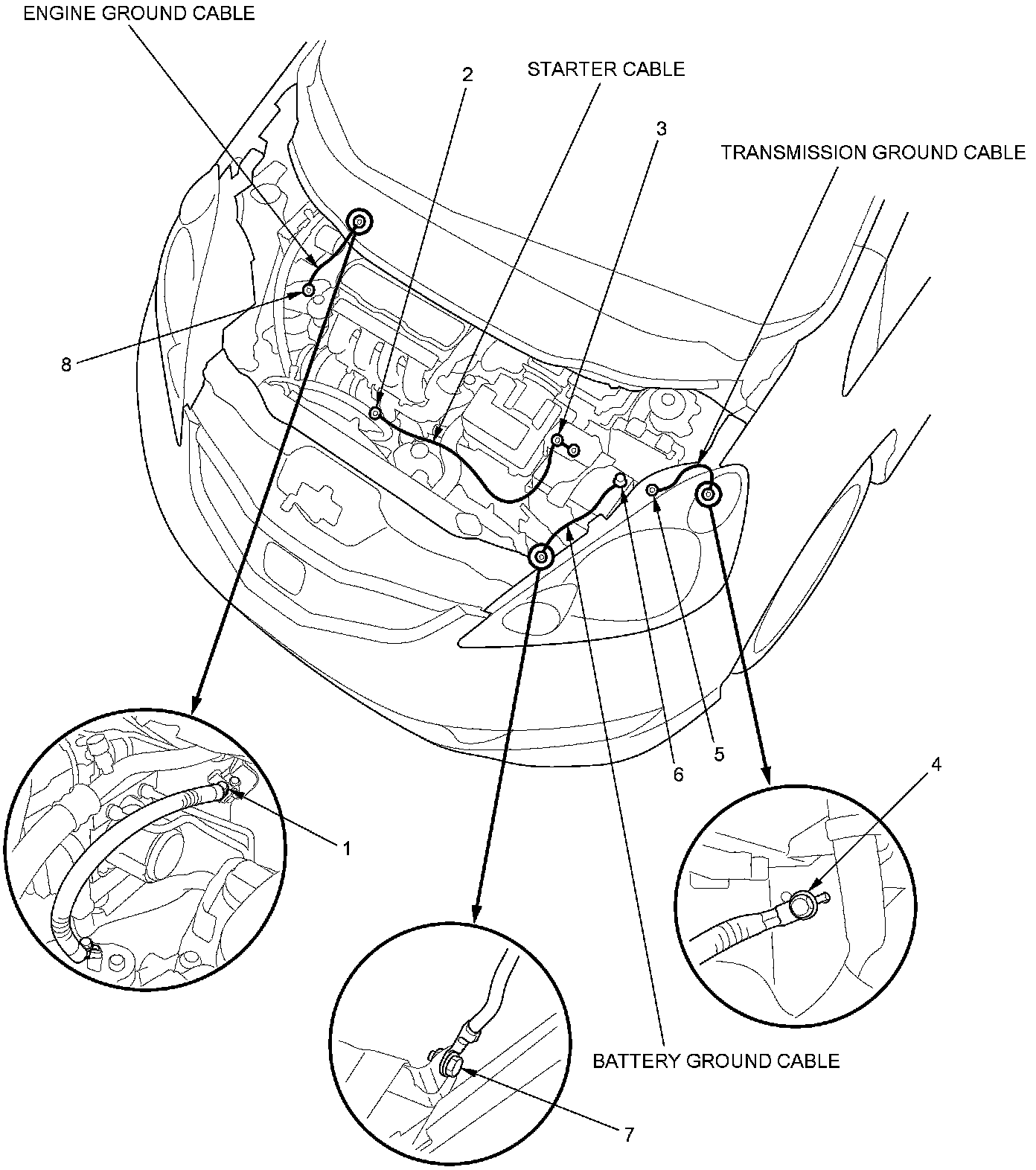

Harness View
