Floor Wire Harness (Left Branch)
Floor Wire Harness (Left Branch)

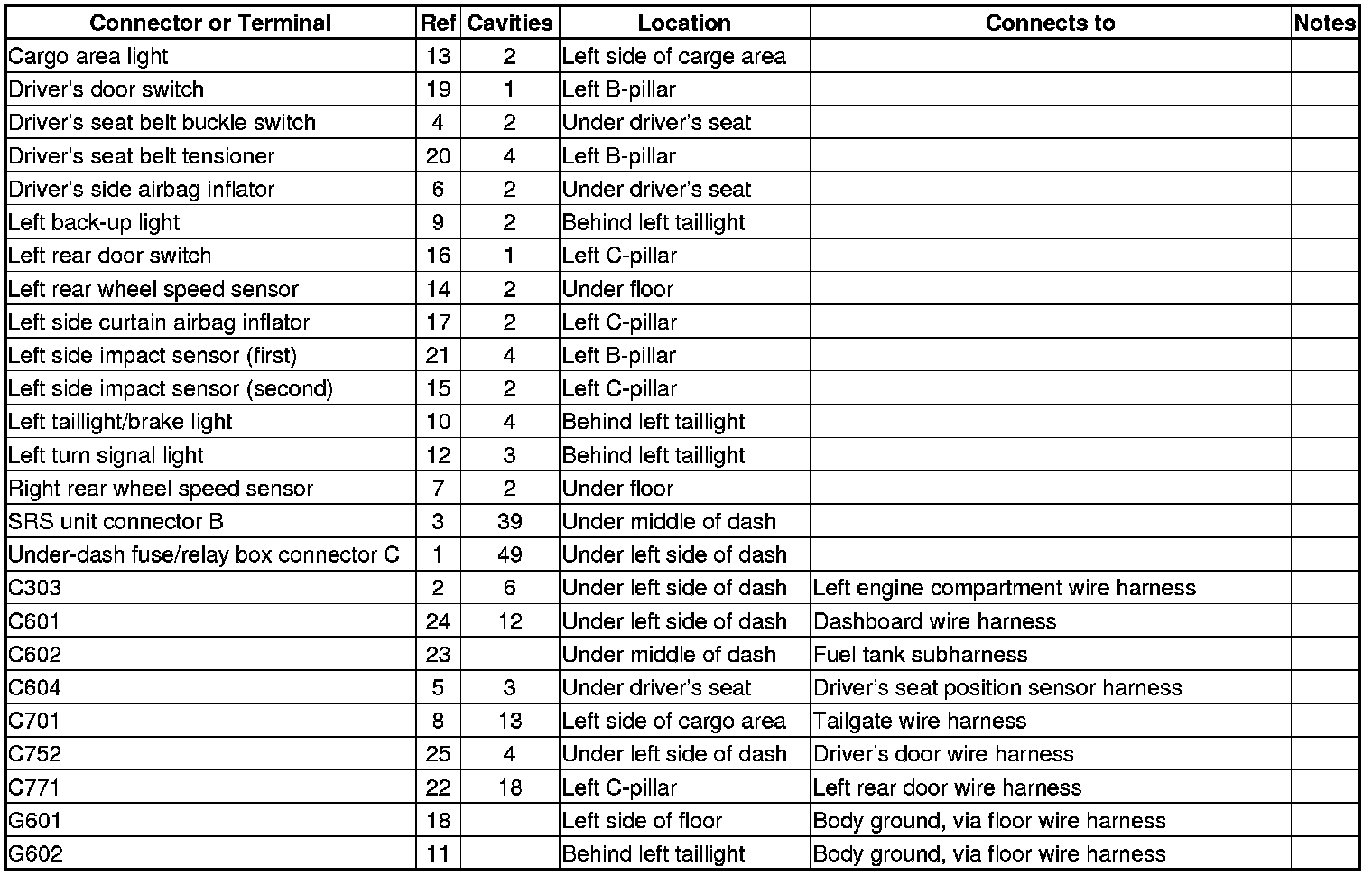

Connector and Harness Locations
Floor Wire Harness (Left branch)

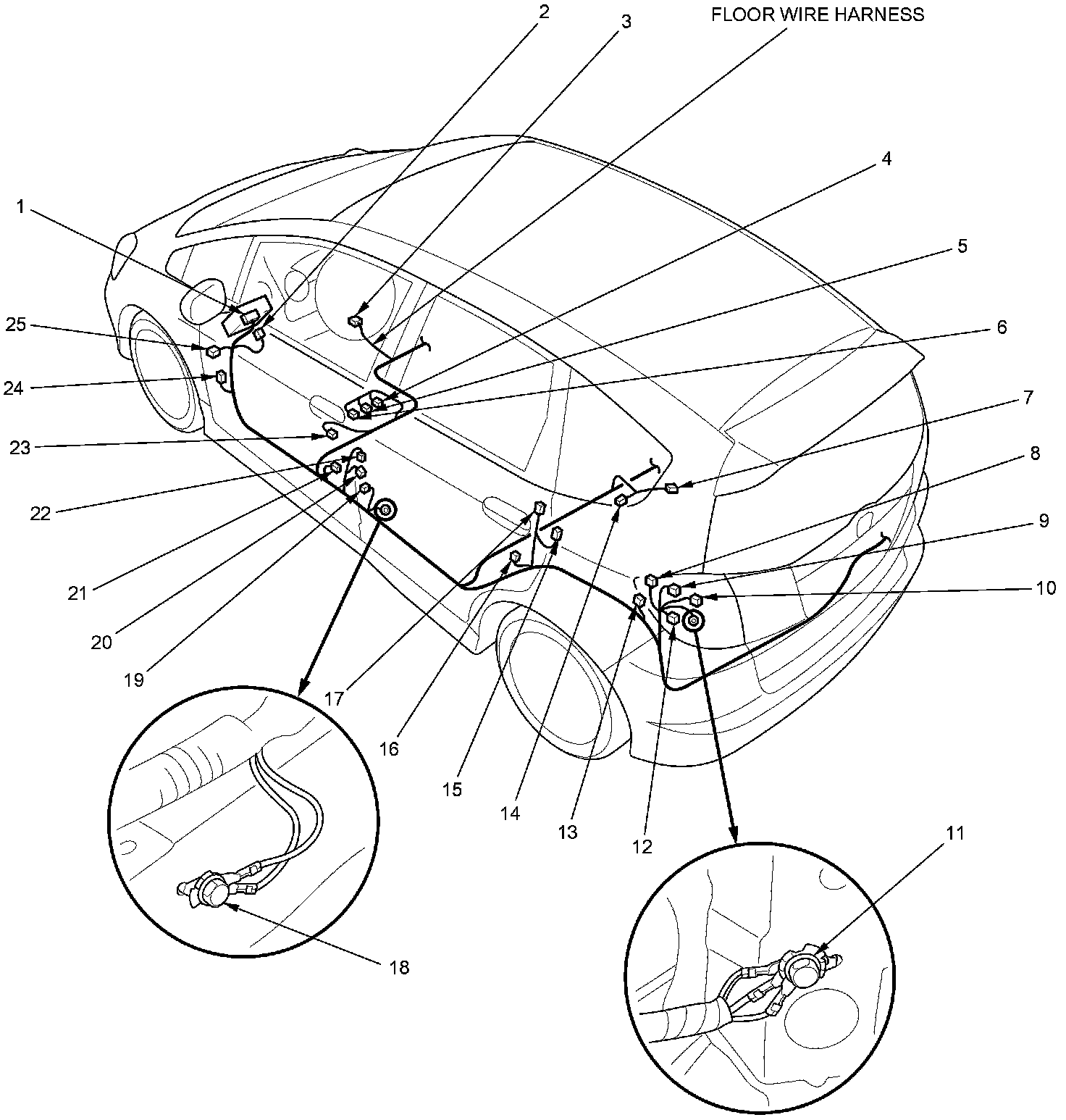

Harness View
