Engine (A/T) (Transmission Side) and Shift Solenoid Wire Harnesses, Transmission Range Switch Subharness




Connector and Harness Locations

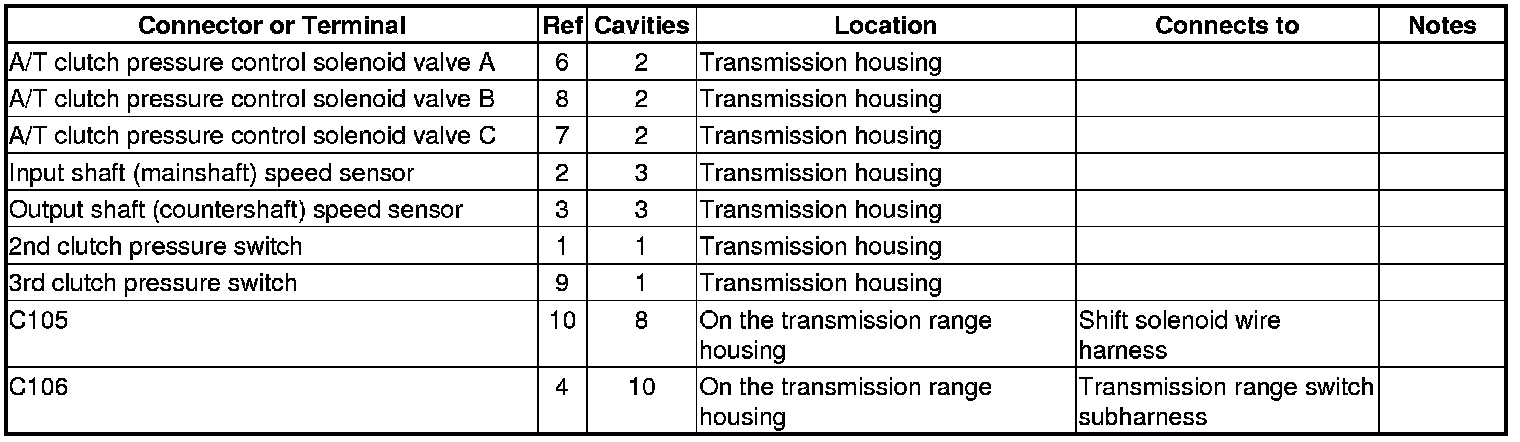

Engine Wire Harness (A/T) (Transmission side)

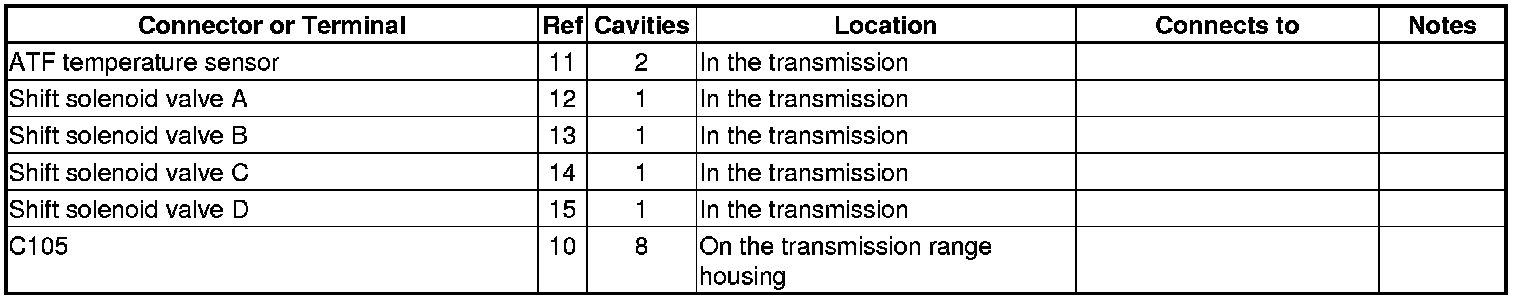

Shift Solenoid Wire Harness

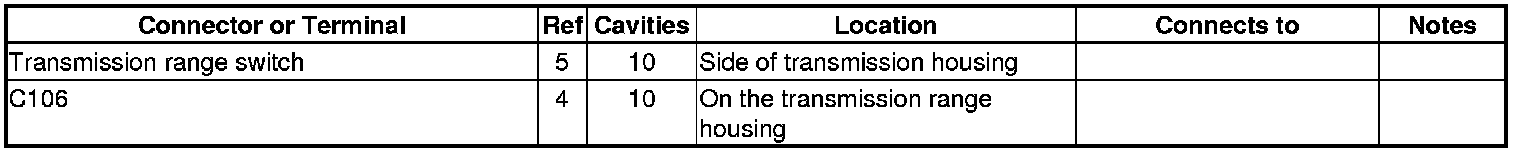

Transmission Range Switch Subharness

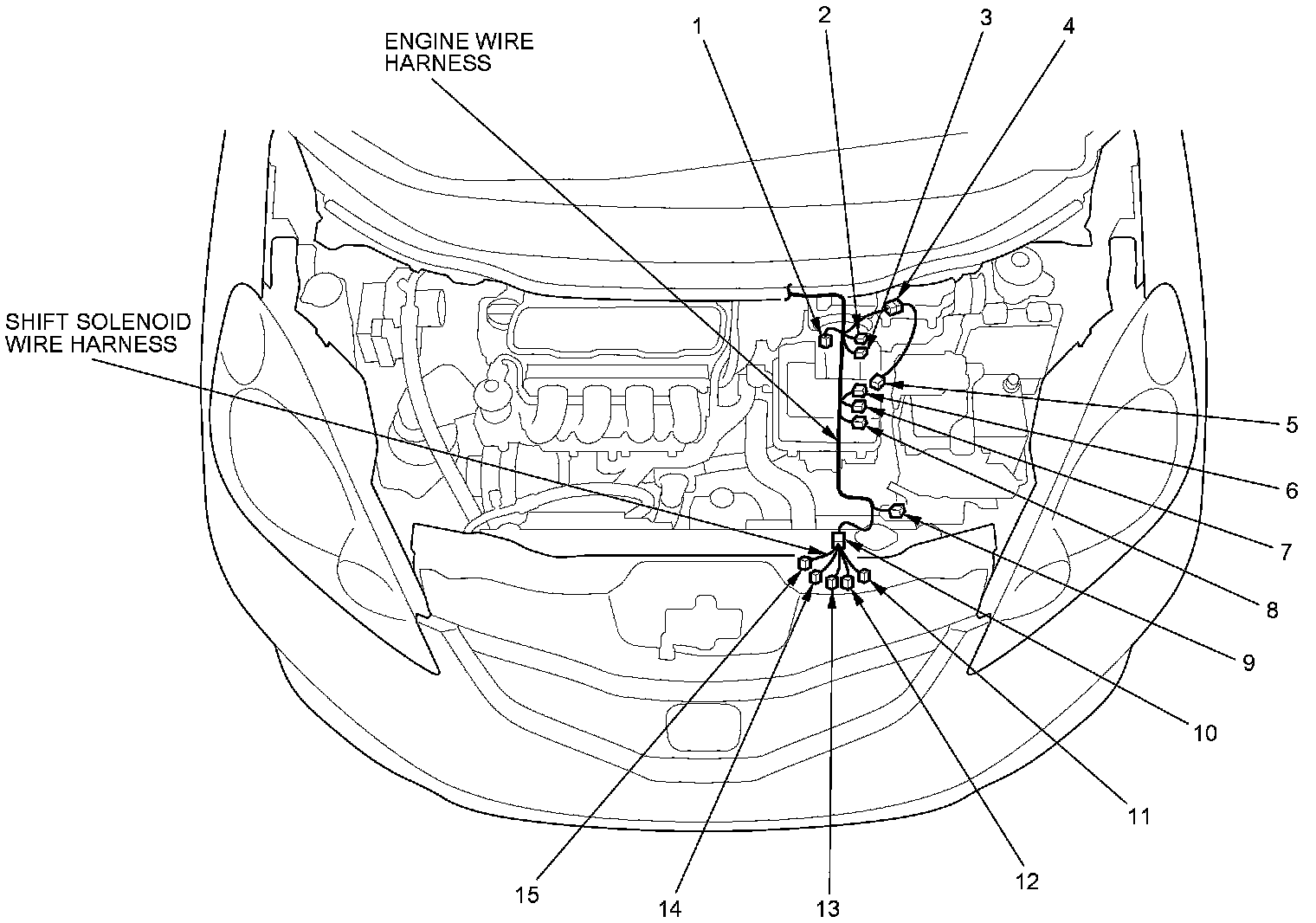

Harness View
