Dashboard Wire Harness (Passenger's Side) (With Navigation)

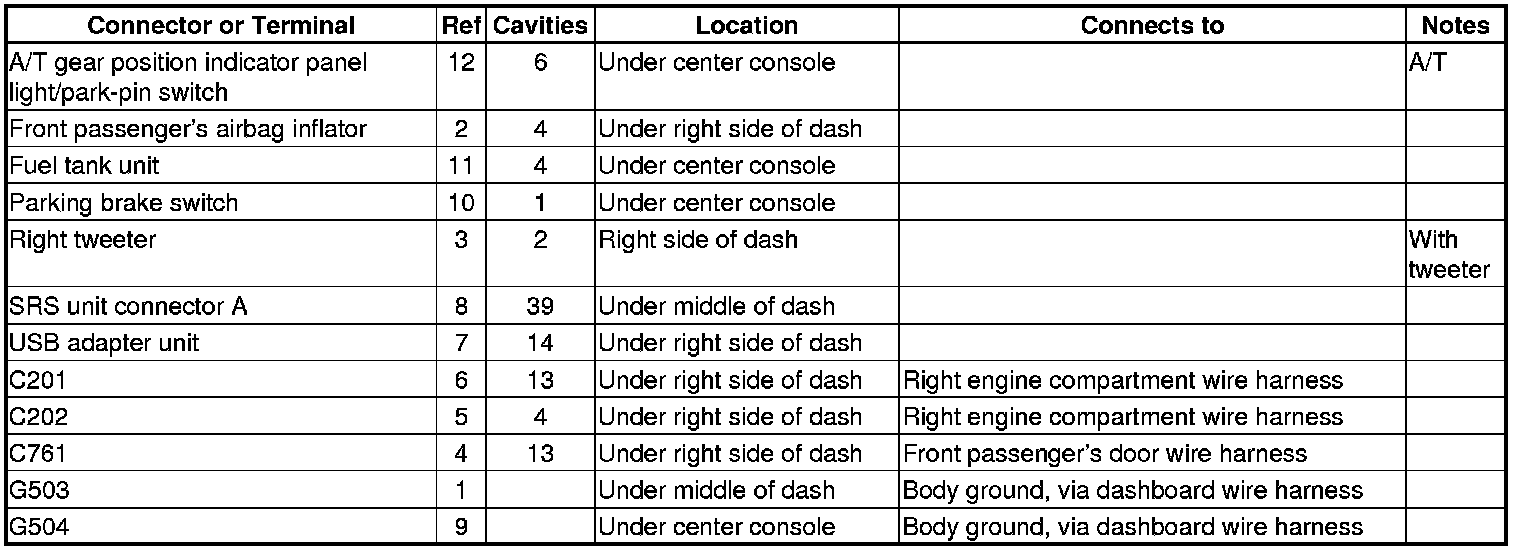

Connector and Harness Locations

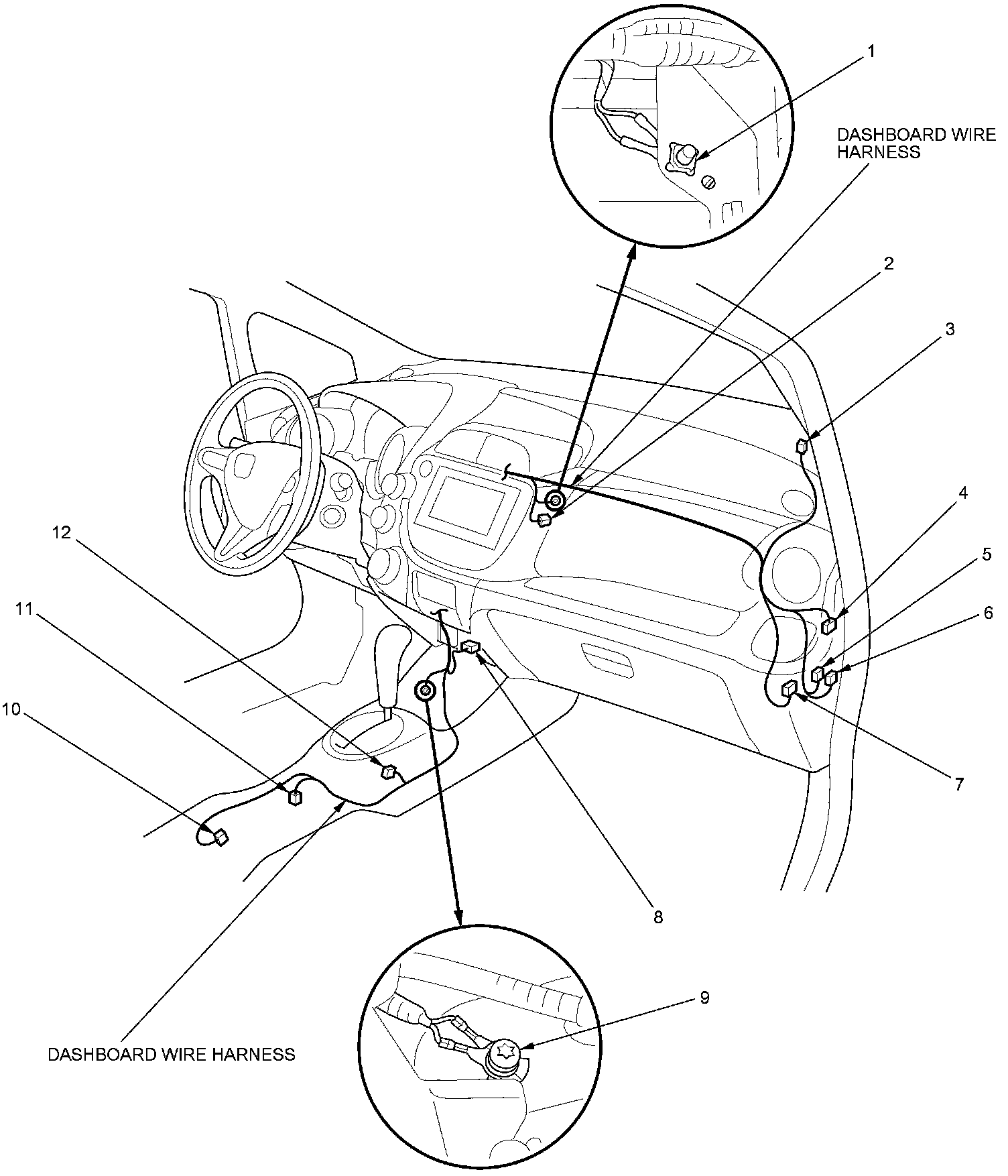

Dashboard Wire Harness (View of passenger's side) (With Navigation)






Harness View
