Engine Assembly Torque Rod Replacement

Engine Assembly Torque Rod Replacement

1. Raise the vehicle on the lift to full height.

2. Place a transmission jack under the transmission and raise it just enough to free the torque rod, then remove the torque rod (A).

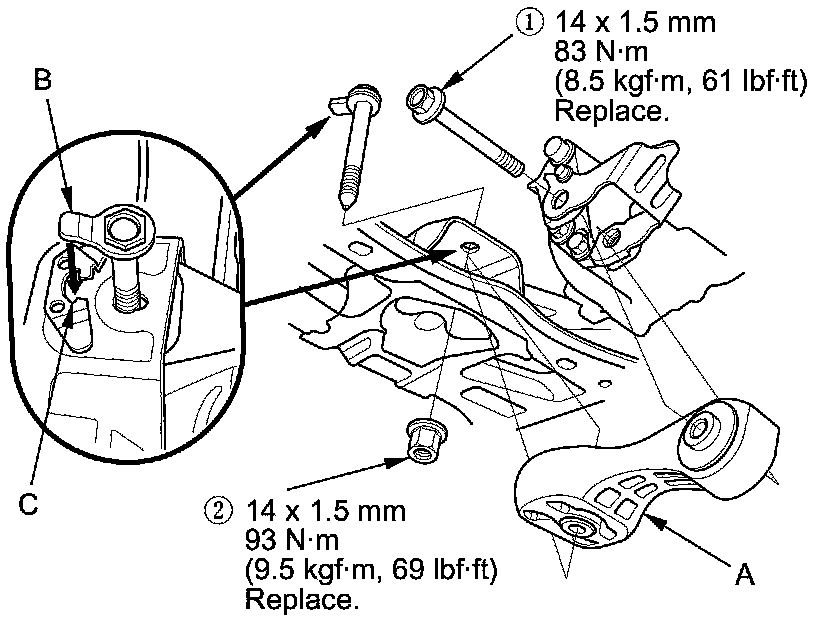

M/T model

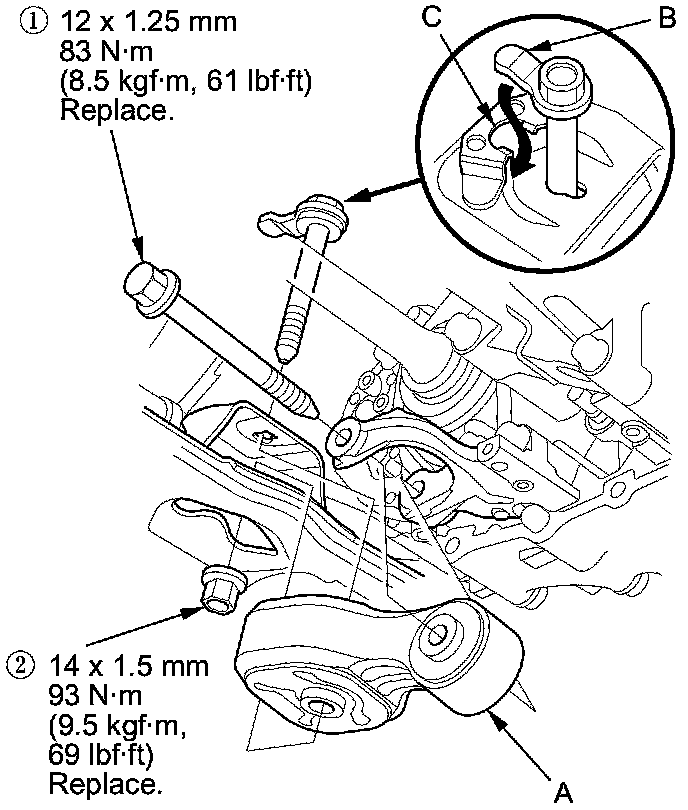

A/T model





3. Install the torque rod. Install the new bolt with the tab (B) on the bolt head aligned with the guide (C) on the front subframe, then tighten the new torque rod mounting bolt and nut in the numbered sequence shown.
