Engine Assembly Torque Rod Bracket Replacement

Engine Assembly Torque Rod Bracket Replacement

1. Raise the vehicle on the lift to full height.

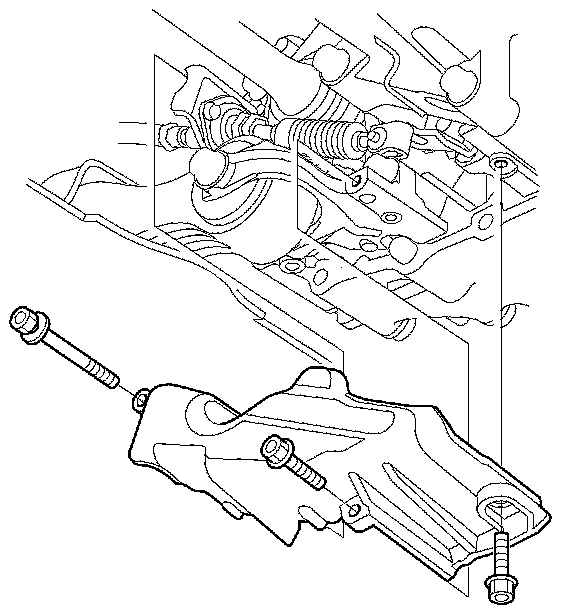

2. A/T model: Remove the shift cable cover.

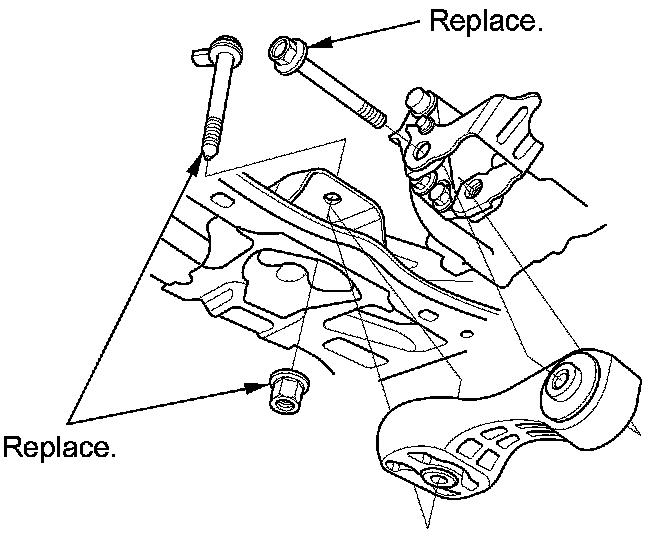

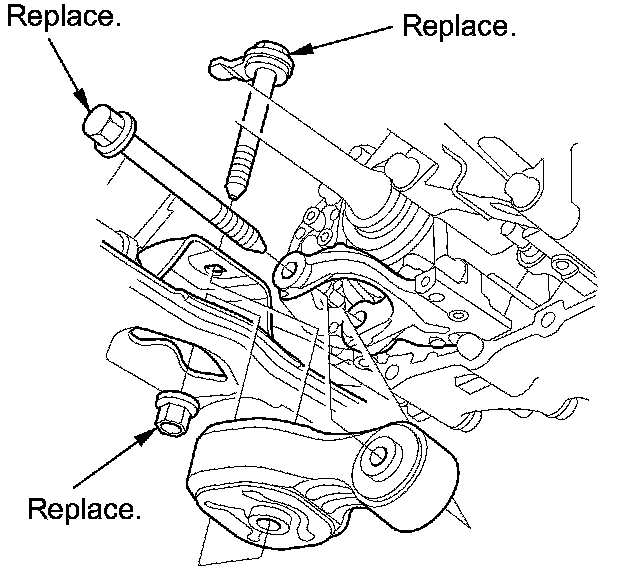

3. Place a transmission jack under the transmission and raise it just enough to free the torque rod, then remove the torque rod.

M/T model





A/T model

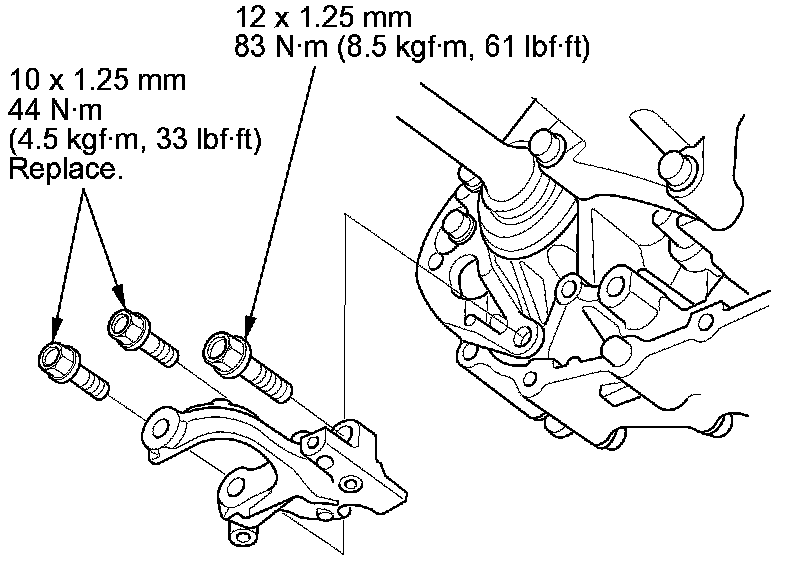

4. Remove the torque rod bracket.

M/T model





A/T model

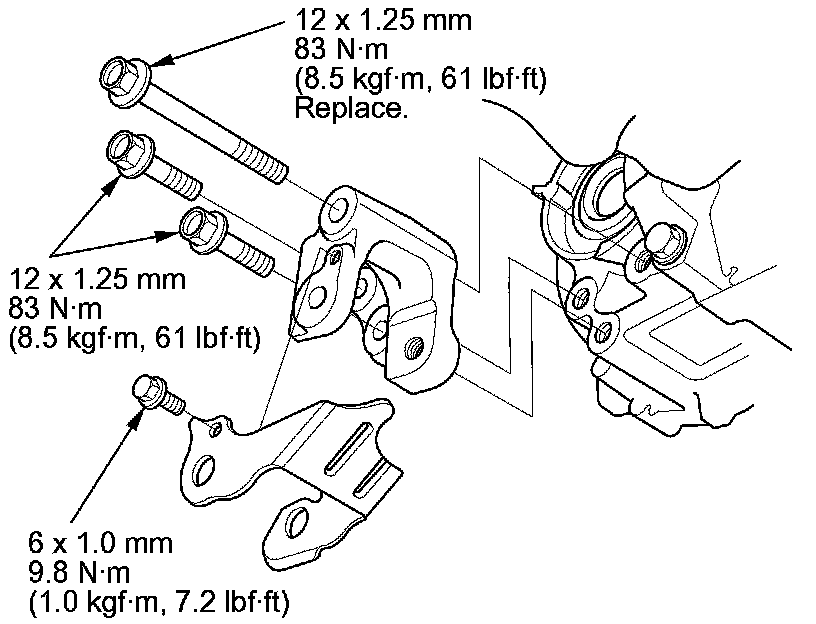

5. Install the torque rod bracket.

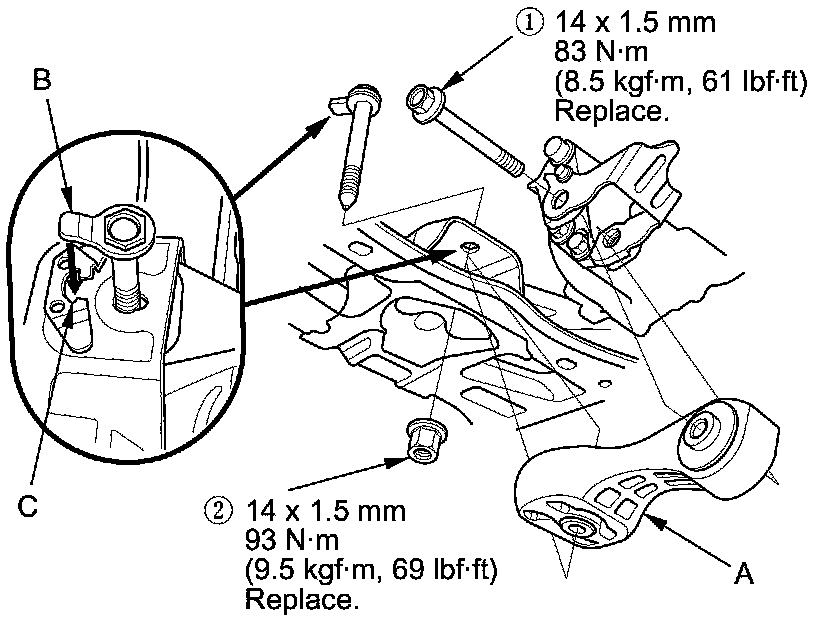

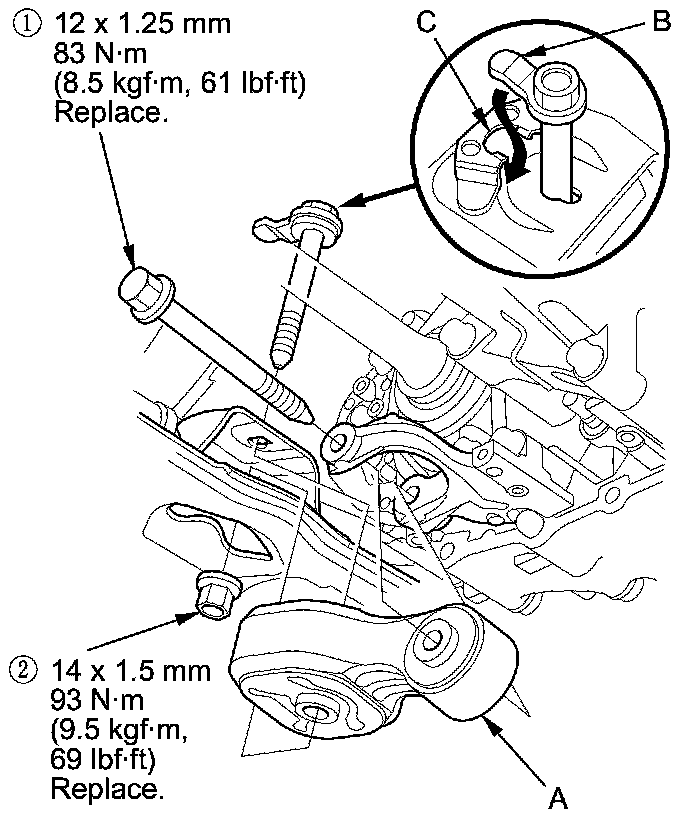

6. Install the torque rod (A). Install the new bolt with the tab (B) on the bolt head aligned with the guide (C) on the front subframe, then tighten the new torque rod mounting bolt and nut in the numbered sequence shown.

M/T model





A/T model





7. A/T model: Install the shift cable cover.
