Home
>>
Honda
>>
2010
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
>>

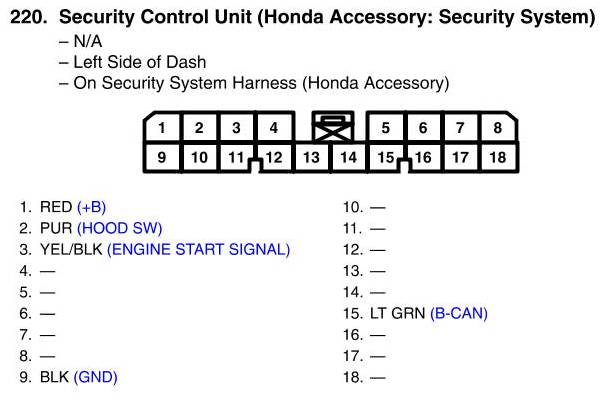

Security Control Unit Connector View (Honda Accessory: Security System)
Security Control Unit Connector View (Honda Accessory: Security System)
