Rear Fender Liner: Service and Repair

Rear Inner Fender Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the rear bumper or the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

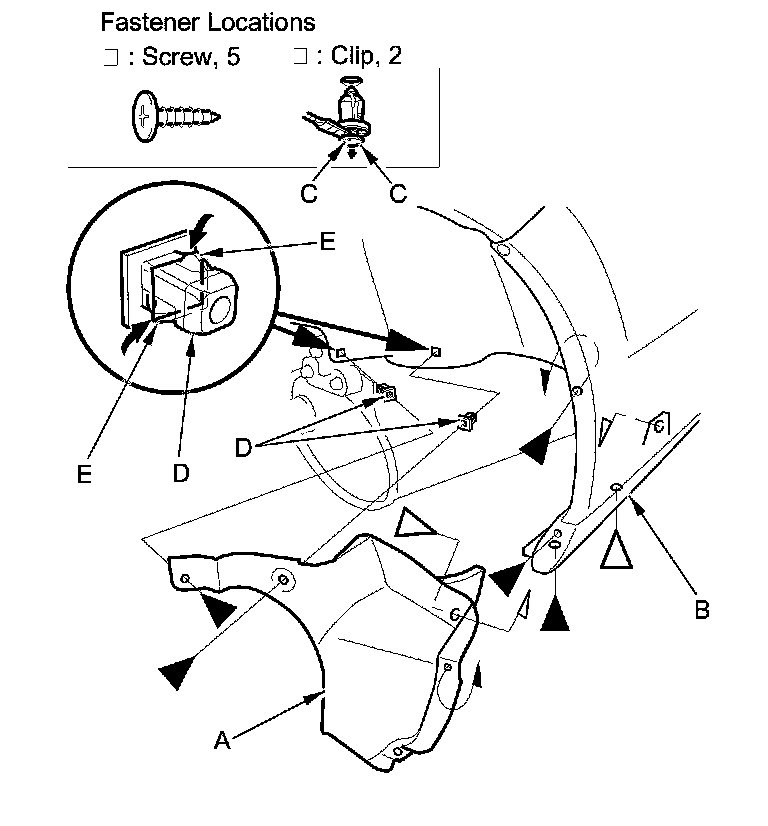

1. Remove the screws and detach the clips, then remove the rear inner fender (A) from the rear bumper (B) and the body.

NOTE: To release the clips, pry up on the center pin at the notch (C).





2. If necessary, pull out the grommets (D) while pinching the hooks (E), then remove it from the body.

3. Install the inner fender in the reverse order of removal, and note these items:

- If the clips and the grommets are damaged or stress-whitened, replace them with new ones.
- Push the clips and the grommets into place securely.
