Steering Gear Mount: Service and Repair

Hydraulic Power Steering Gearbox Mount Cushion Replacement

1. Remove the steering gearbox. Hydraulic Power Steering Gearbox Removal (Without EPS)

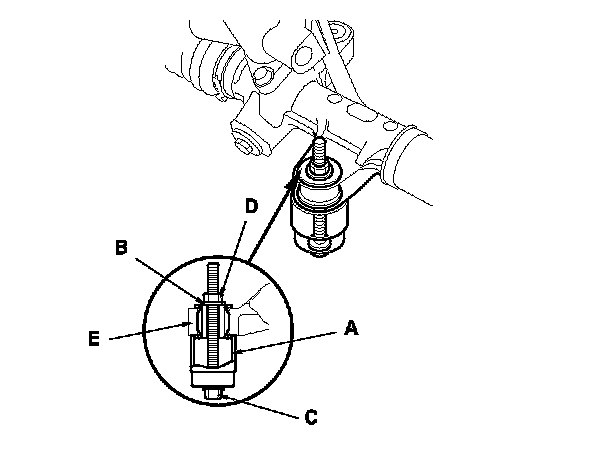

2. Position a 34 mm socket (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C), and a 10 mm nut (D) as shown.

3. Hold the 10 mm nut with a wrench, and tighten the 10 x 105 mm flange bolt with another wrench. Remove the gearbox mount cushion (E).

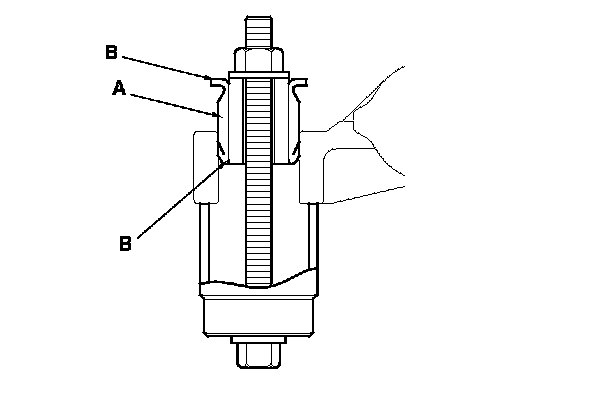

4. Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place the mount cushion on the gearbox mounting cushion hole.

5. Position a 34 mm socket on the flange part of the gearbox housing with a washer, a flange bolt, and a nut as shown.

6. Install the gearbox mount cushion by tightening the nut until the mount cushion edges (B) contact the gearbox flange surface.

7. Install the steering gearbox. Hydraulic Power Steering Gearbox Installation (Without EPS)
