Engine (A/T Section), Shift Solenoid Wire Harness




Connector and Harness Locations

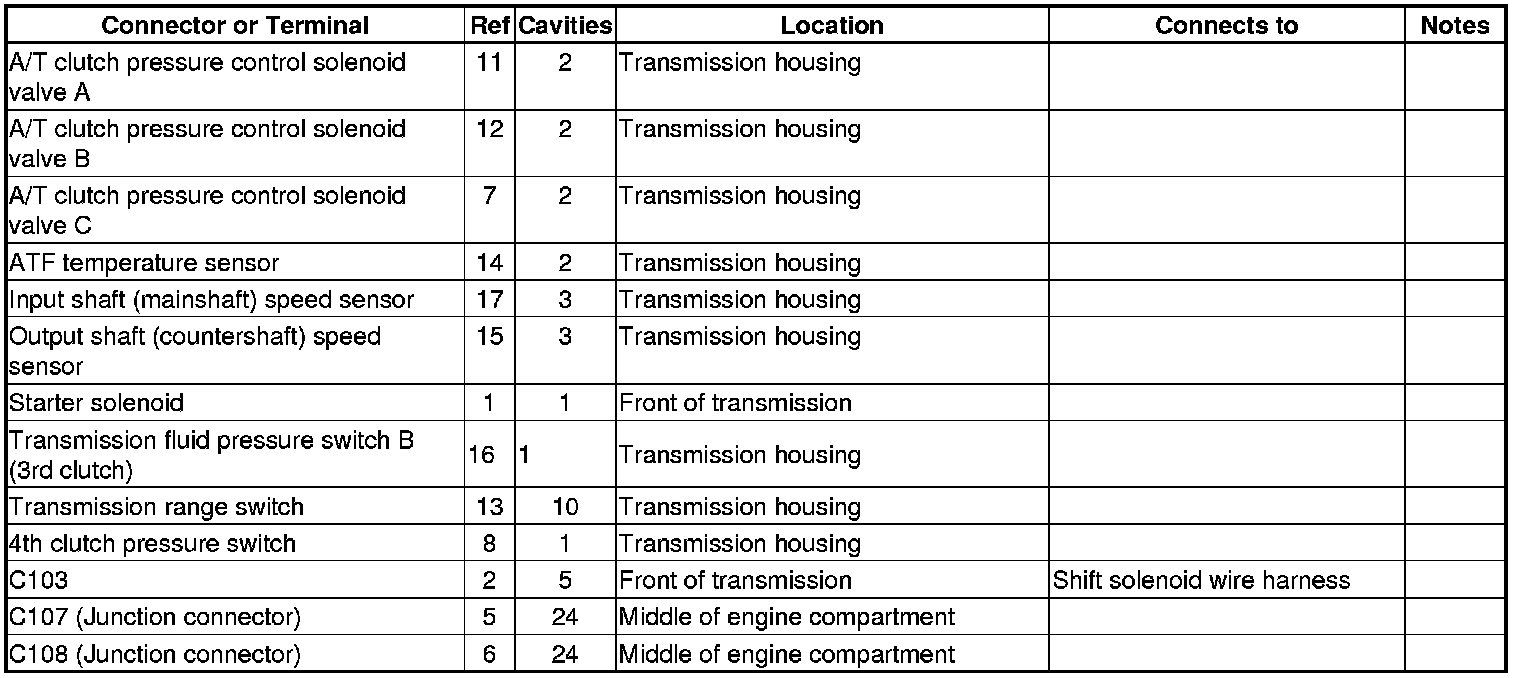

Engine Wire Harness (A/T) (Transmission section)

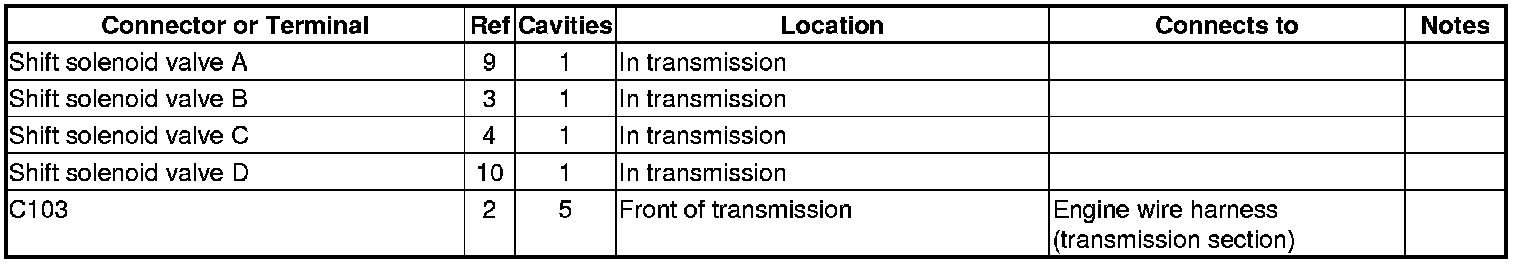

Shift Solenoid Wire Harness (A/T)

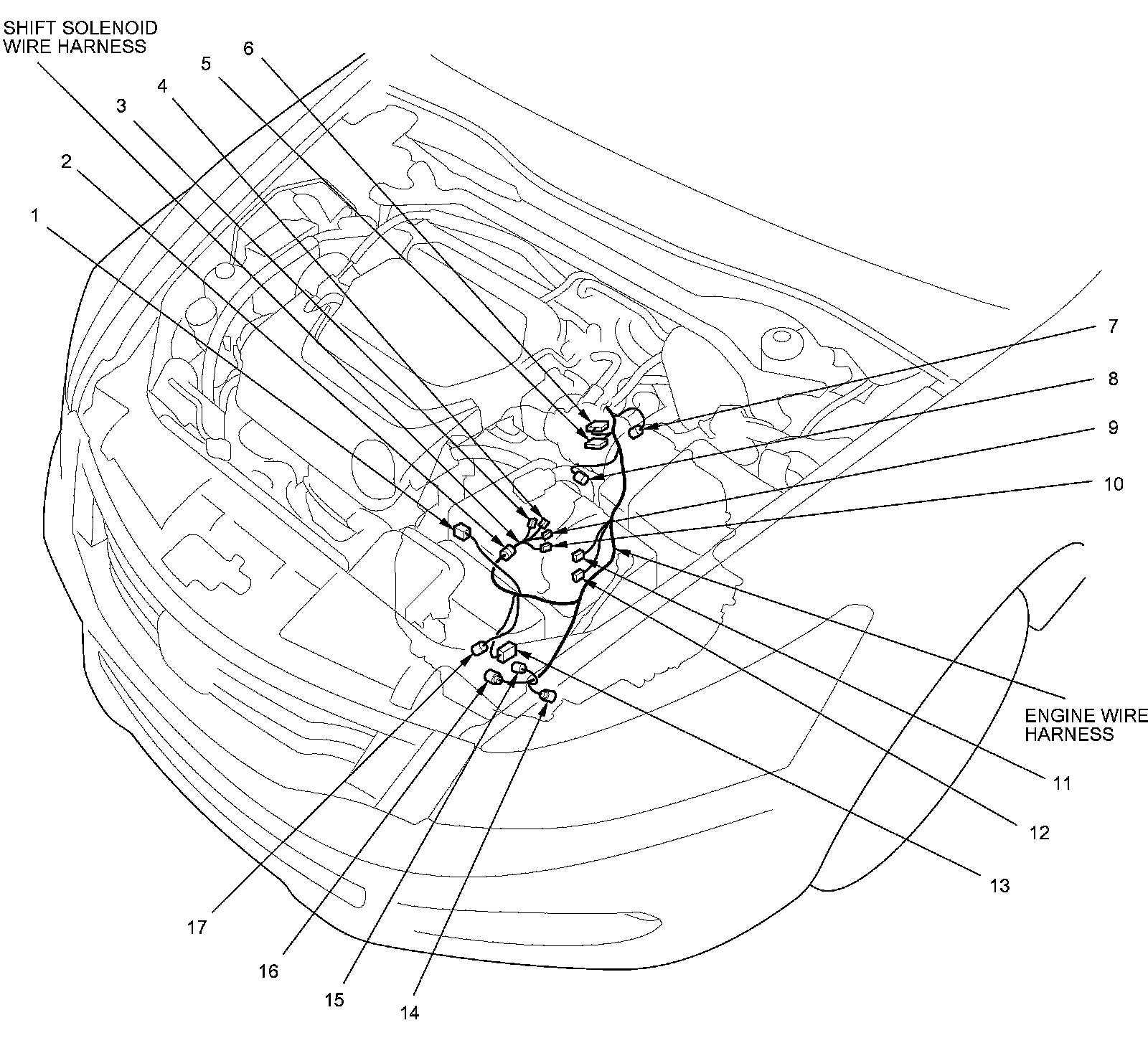

Harness View
