Home >> Honda >> 2010 >> Accord V6-3.5L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Locations >> Cylinder Head Assembly Component Location Index (J35Z3 Engine)

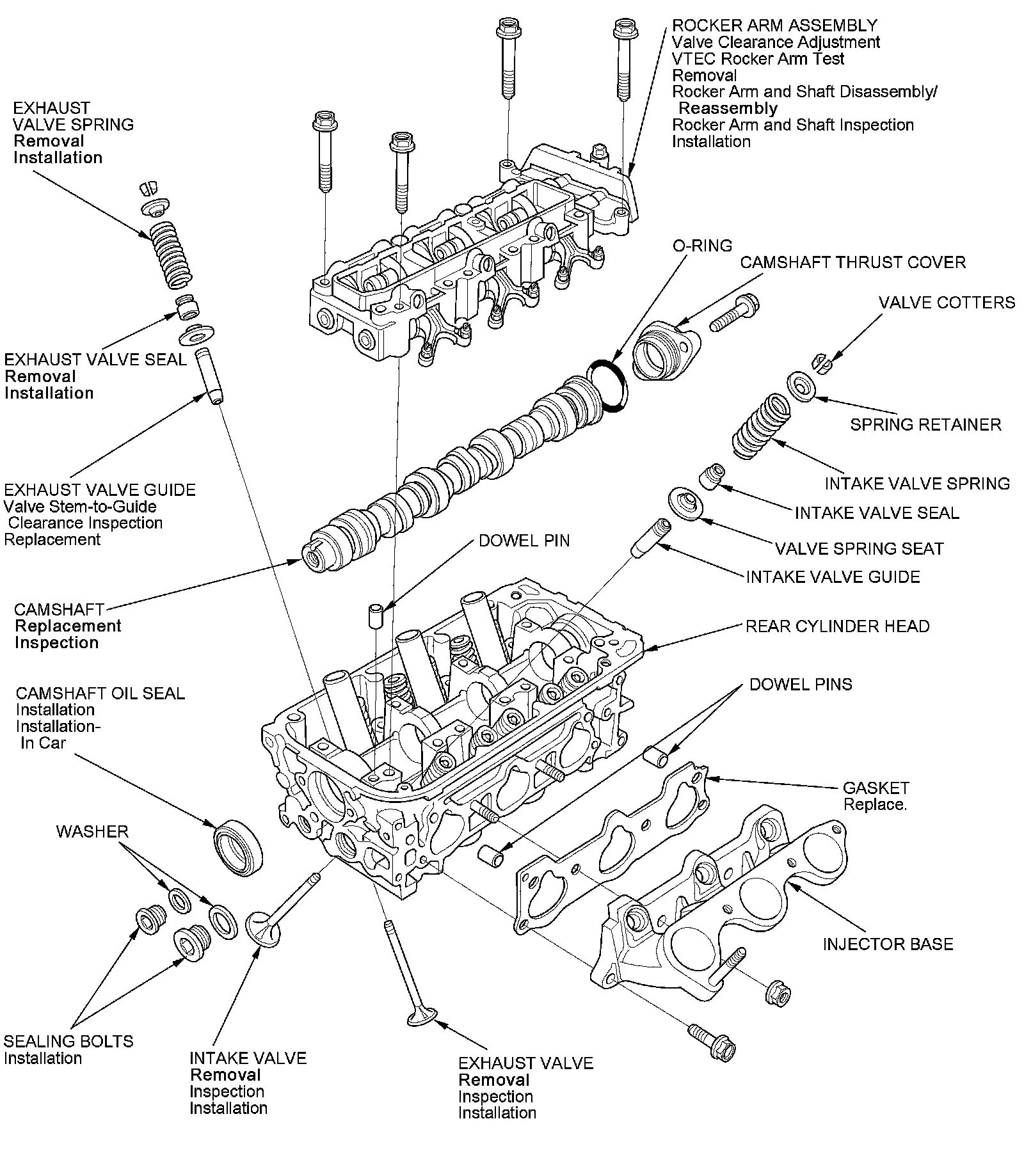

Cylinder Head Assembly Component Location Index (J35Z3 Engine)




Cylinder Head Assembly Component Location Index










FRONT





REAR
