Cylinder Head Assembly Component Location Index (J35Z2 Engine)

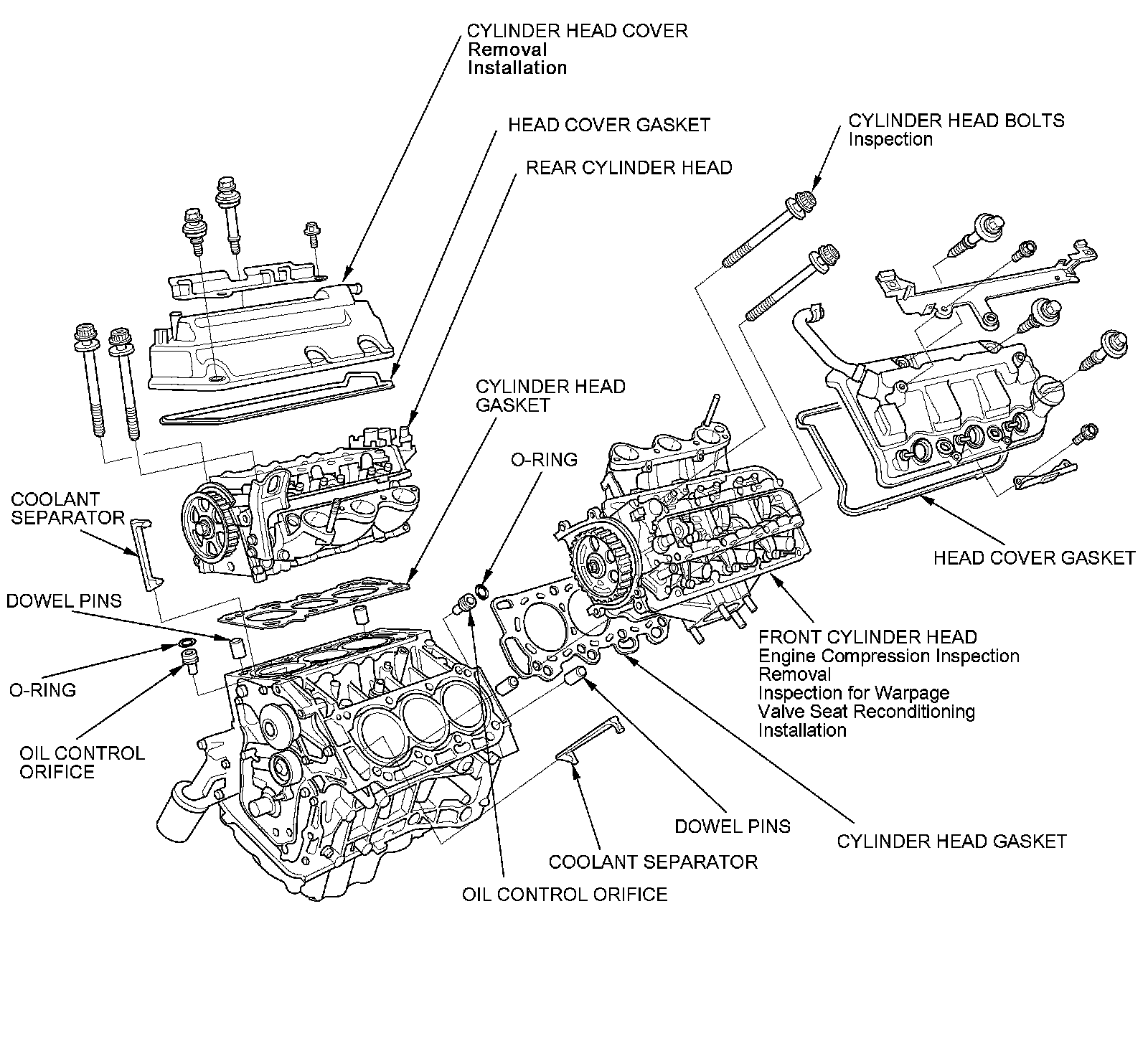

Cylinder Head Assembly Component Location Index

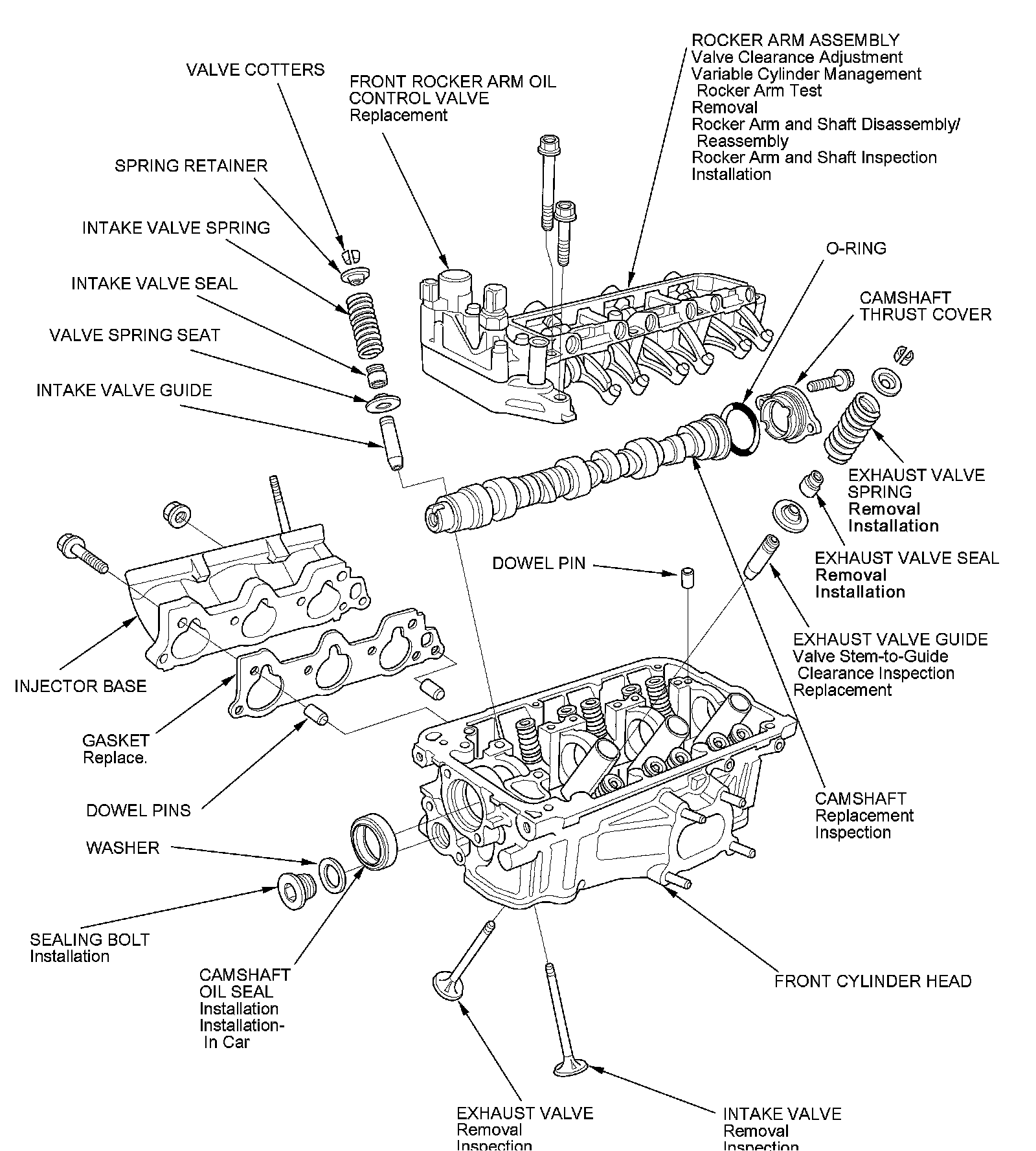

FRONT

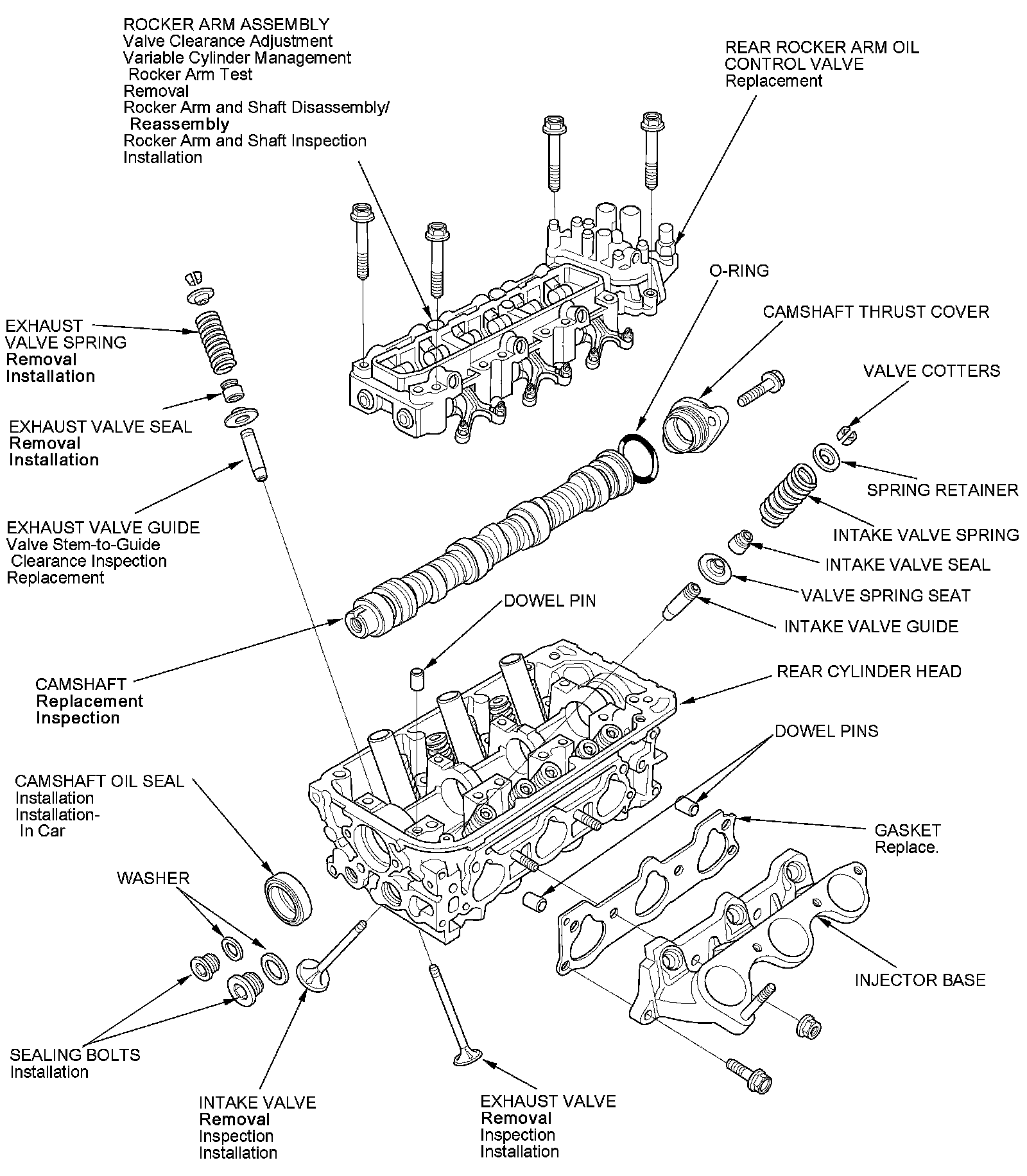

REAR
