Honda
>>
2010
>>
Accord V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

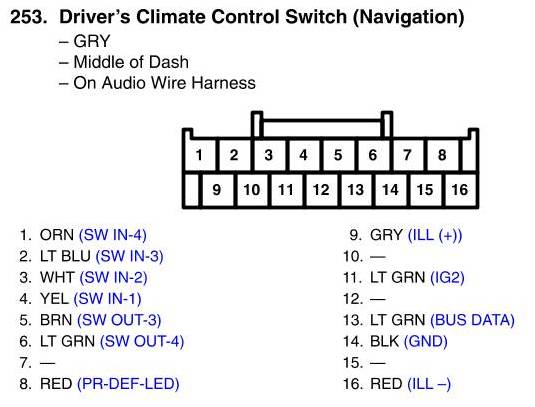

Driver's Climate Control Switch Connector View (Navigation)
Driver's Climate Control Switch Connector View (Navigation)
