Home
>>
Honda
>>
2010
>>
Accord V6-3.5L
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Drive Axles, Bearings and Joints
>>
Axle Shaft Assembly
>>
Images
Images
Driveshaft - Half Shaft:

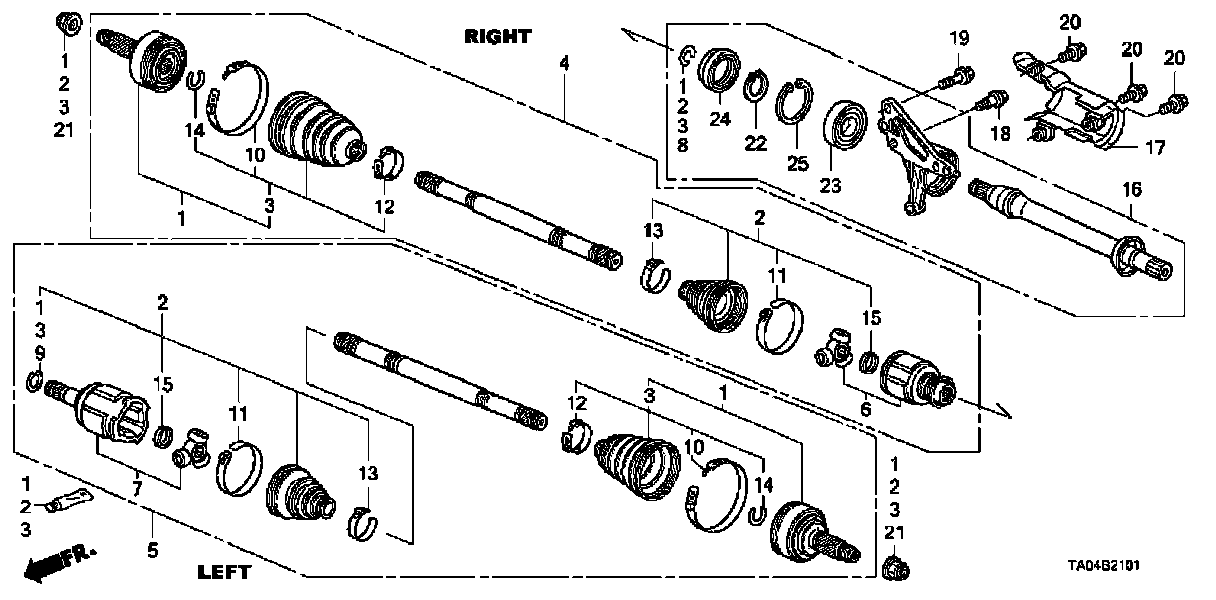

Driveshaft - Half Shaft (AT):

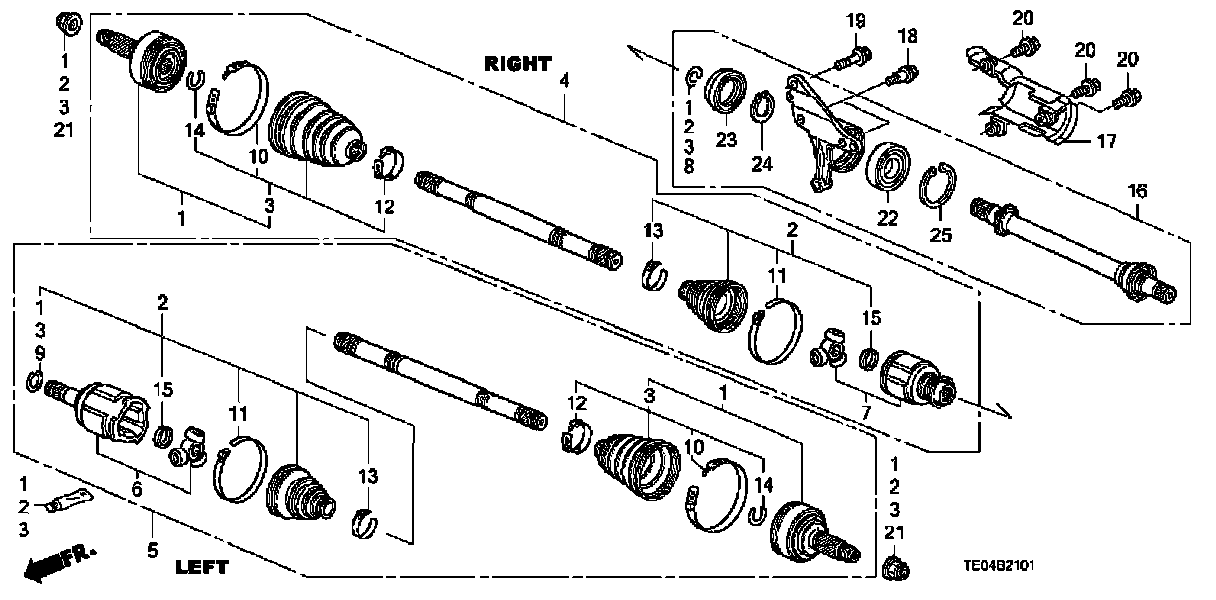

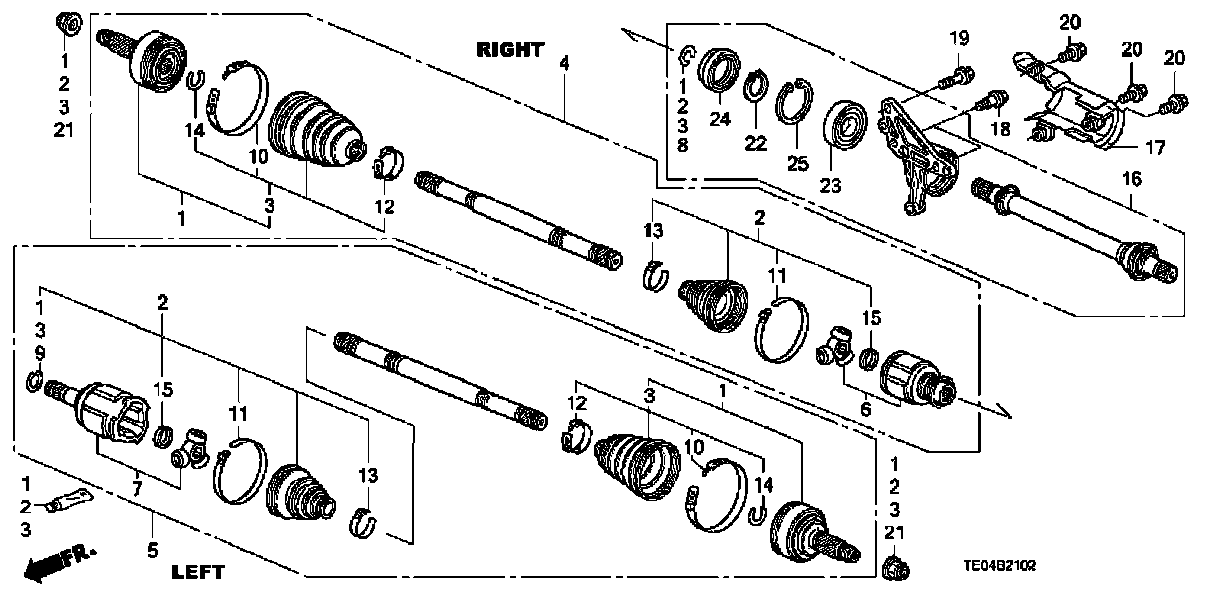

Driveshaft - Half Shaft (MT):
