Home >> Honda >> 2009 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Diagram Set 14 (Ground Distribution) >> G501

G501

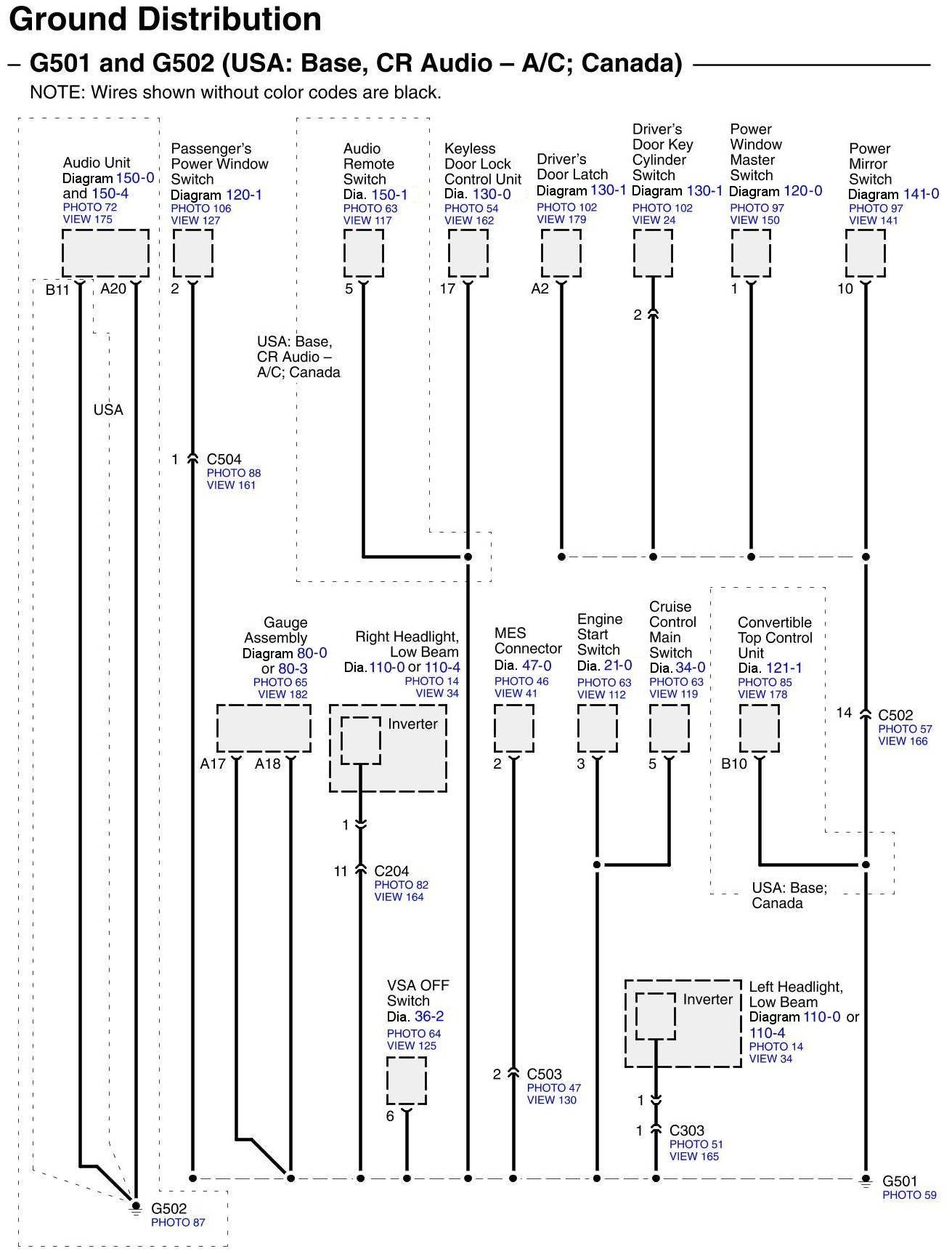

Diagram 14-5:
