Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2009
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

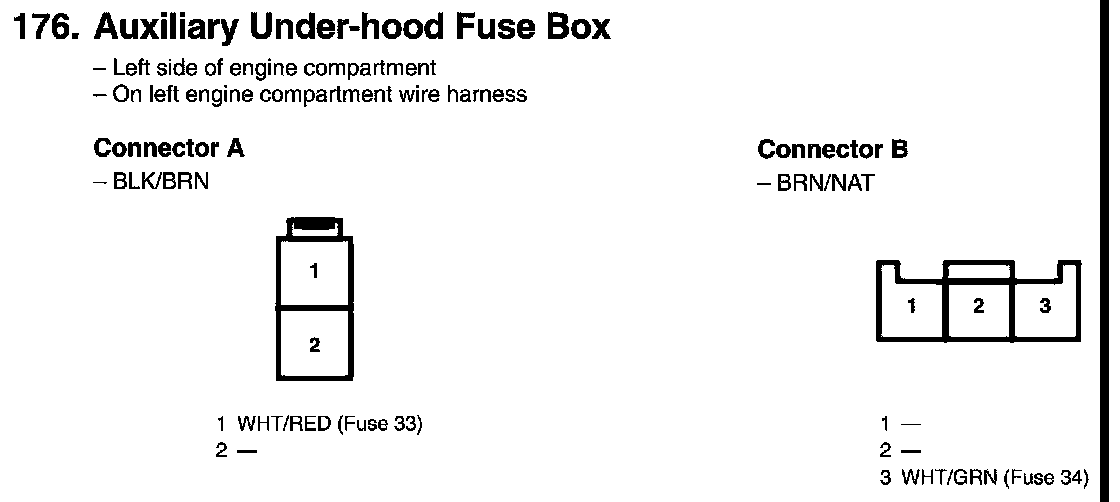

Auxiliary Under-hood Fuse Box Connector View
Auxiliary Under-hood Fuse Box Connector View
