Door Speaker Replacement

Door Speaker Replacement

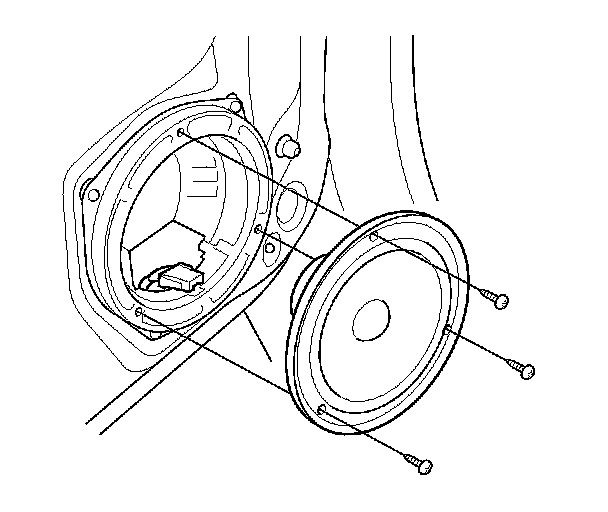

1. Remove the door panel. Service and Repair

2. Remove the three mounting screws.

3. Disconnect the 2P connector from the speaker.

4. Install the speaker in the reverse order of removal.
