Power and Ground Distribution
>>
Fuse
>>
Locations
>>

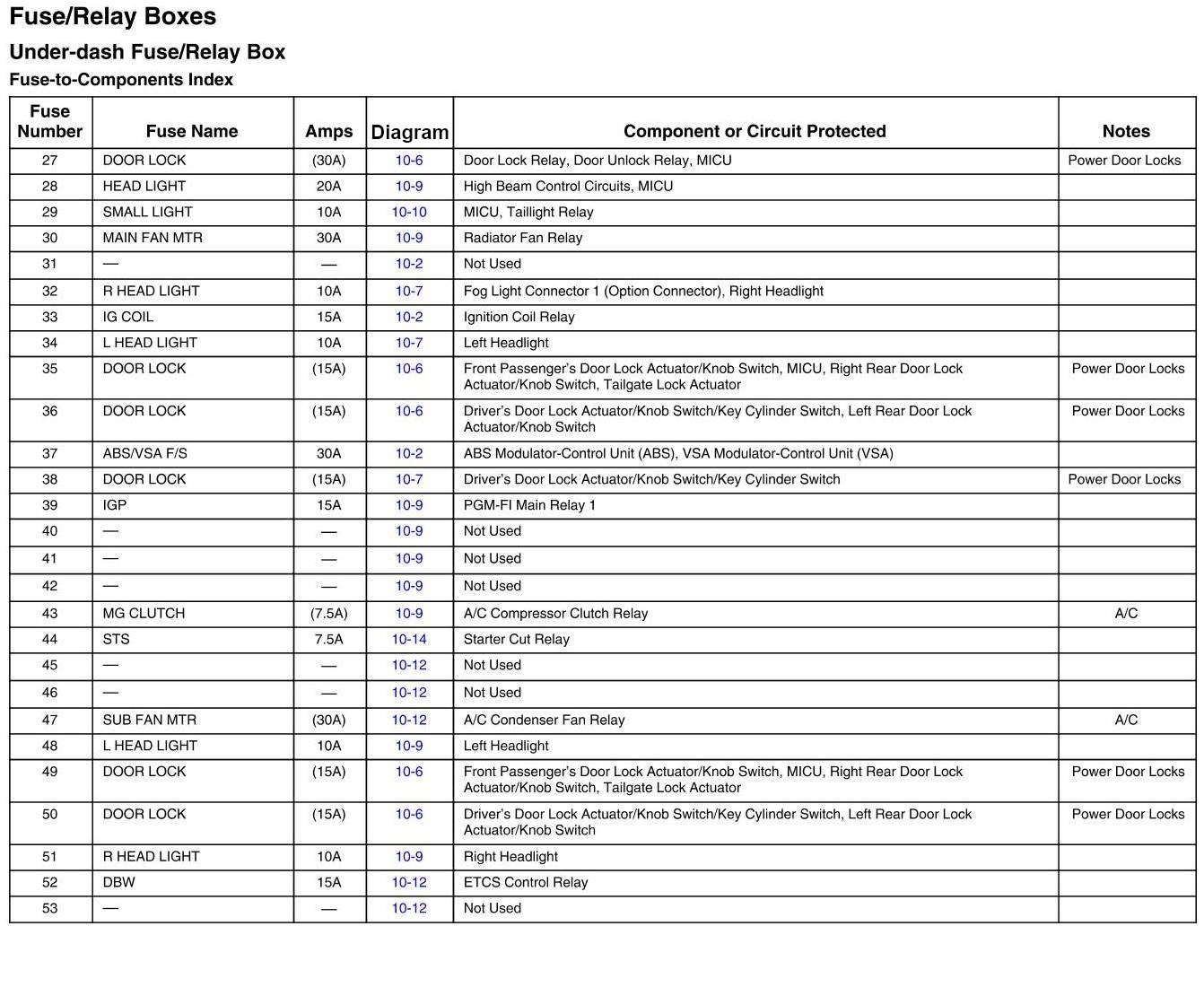

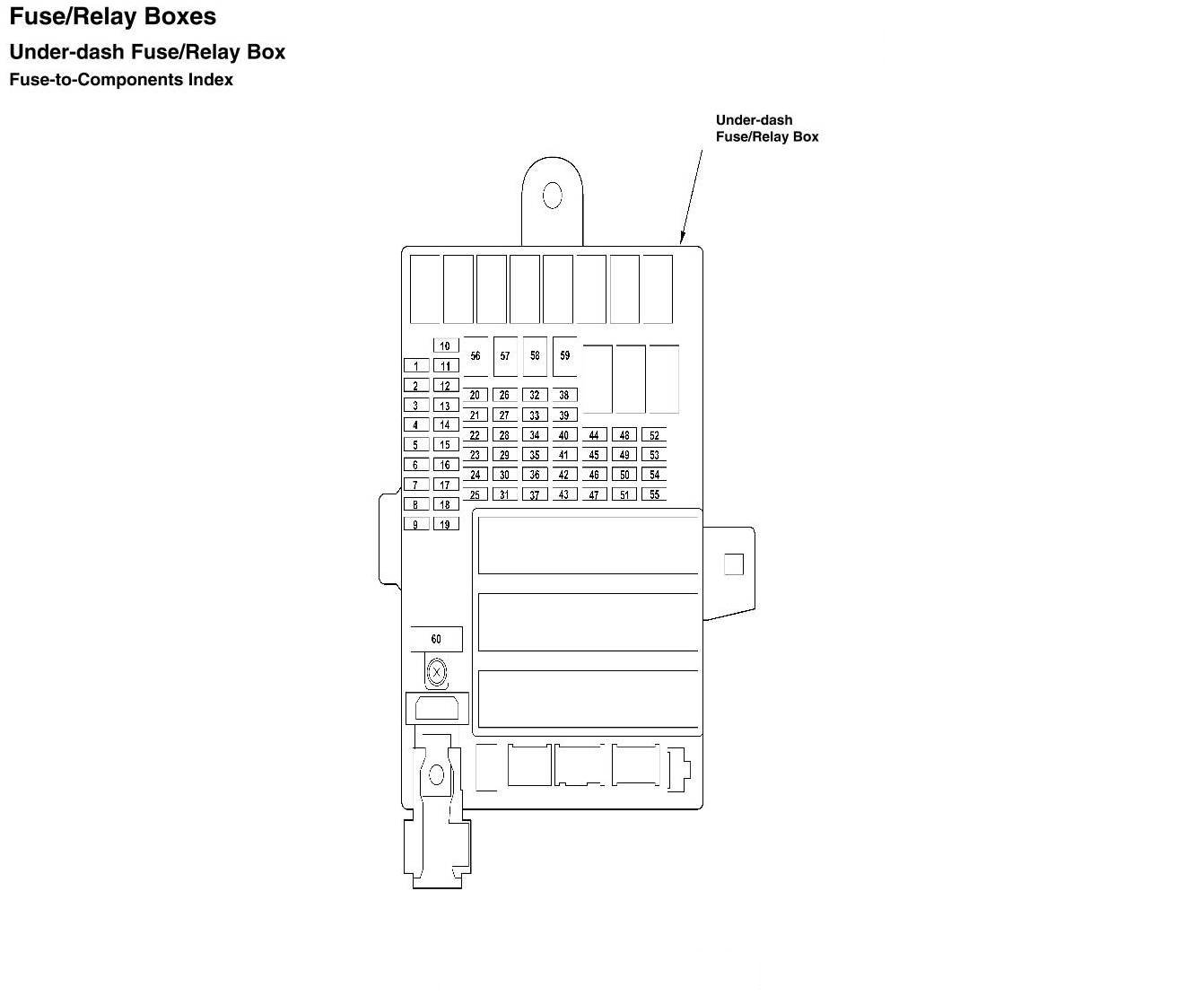

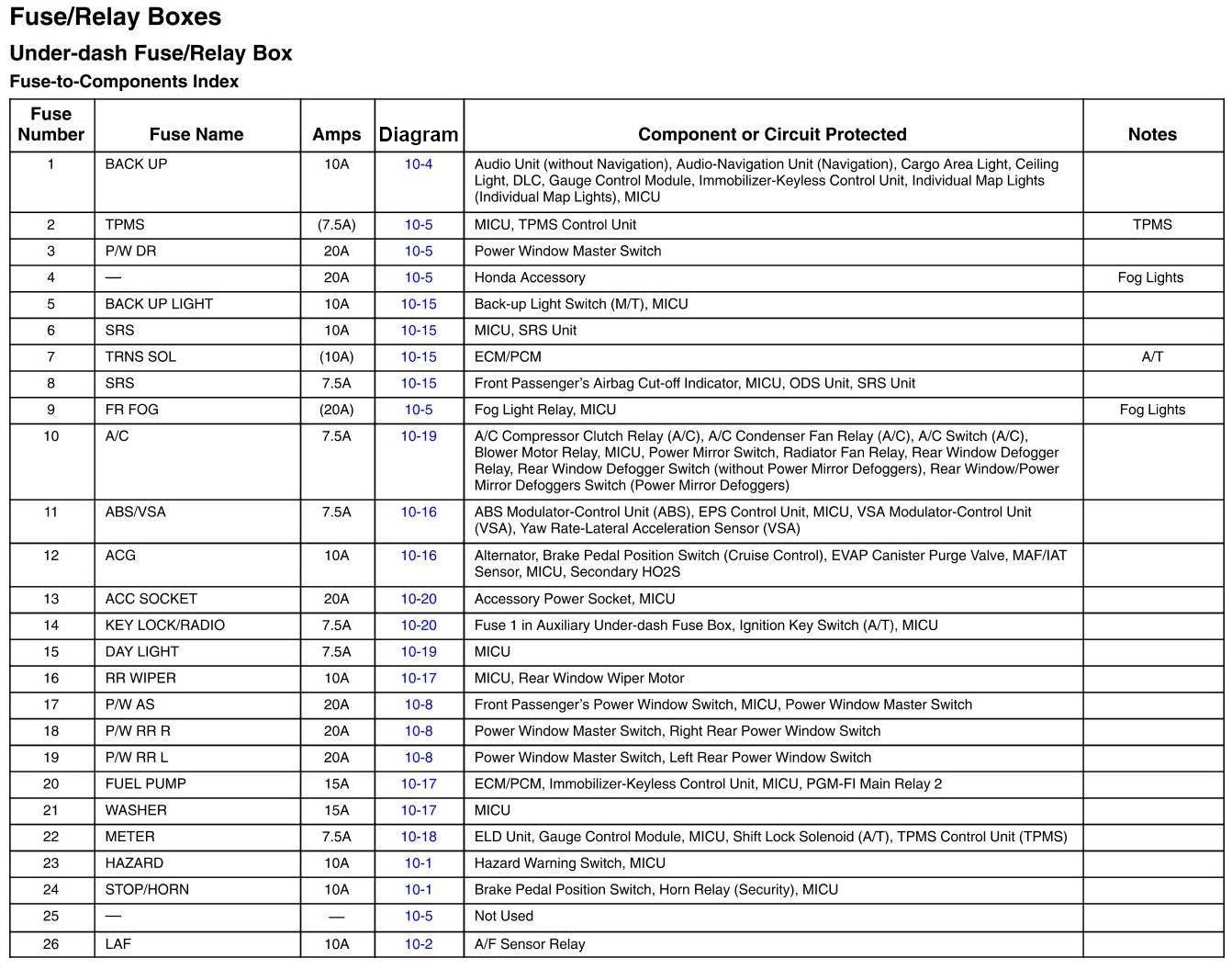

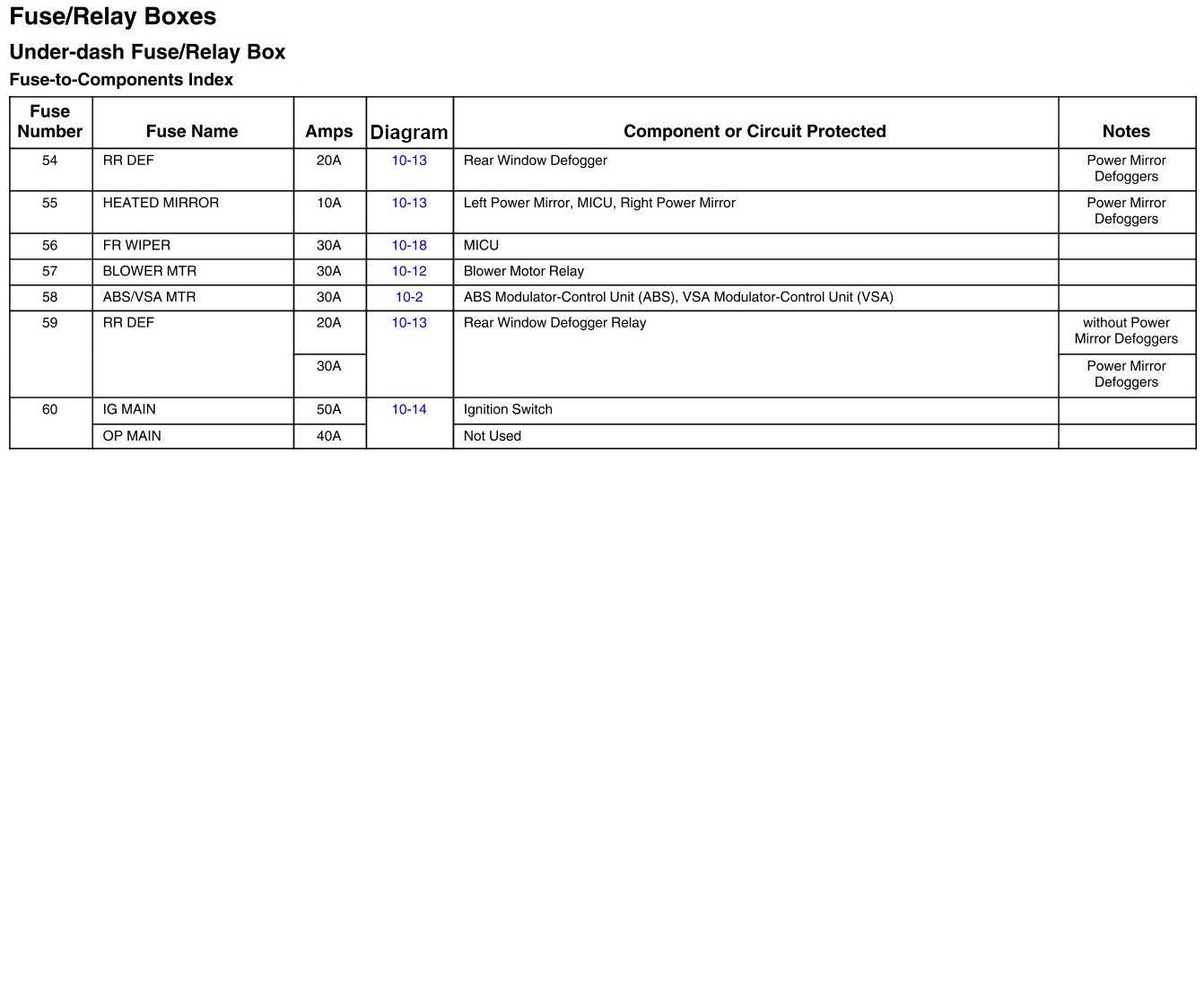

Under-dash Fuse/Relay Box - Fuse-to-Components Index
Under-dash Fuse/Relay Box - Fuse-to-Components Index
