Engine Assembly Torque Rod Replacement

Engine Assembly Torque Rod Replacement

1. Raise the vehicle on the lift to full height.

2. Support the transmission with a jack and wood block under the transmission.

3. Remove the torque rod (A).

4. Install the torque rod. Install the new bolt with the tab (B) on the bolt head aligned with the guide (C) on the front subframe, then tighten the new torque rod mounting bolt and nut in the numbered sequence shown.

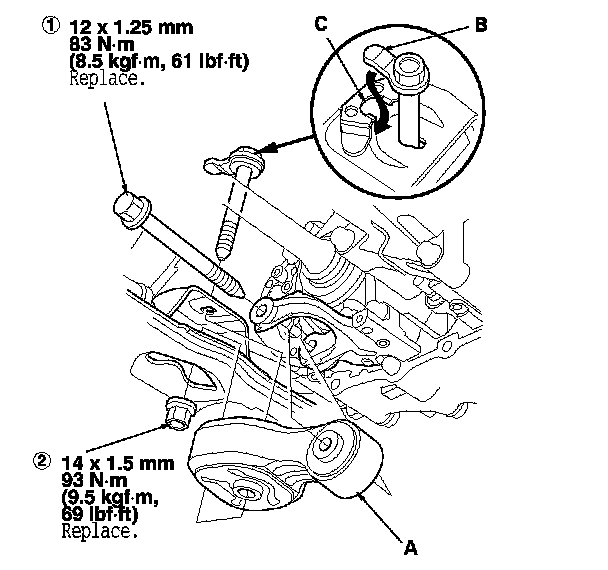

M/T model

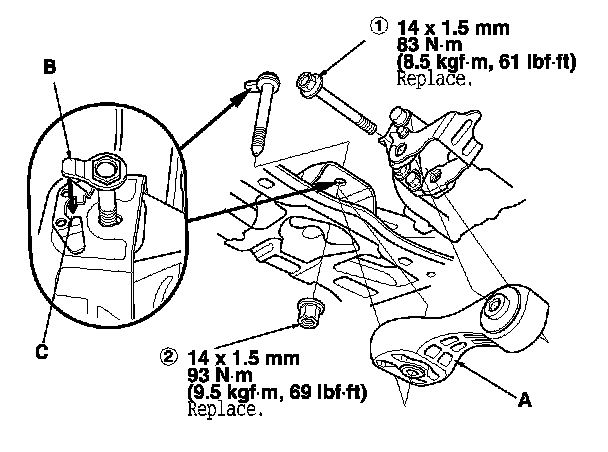

A/T model
