Honda
>>
2009
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>

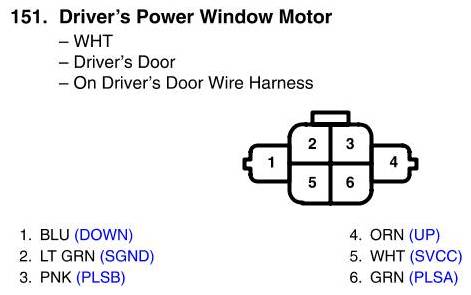

Driver's Power Window Motor Connector View
Driver's Power Window Motor Connector View
