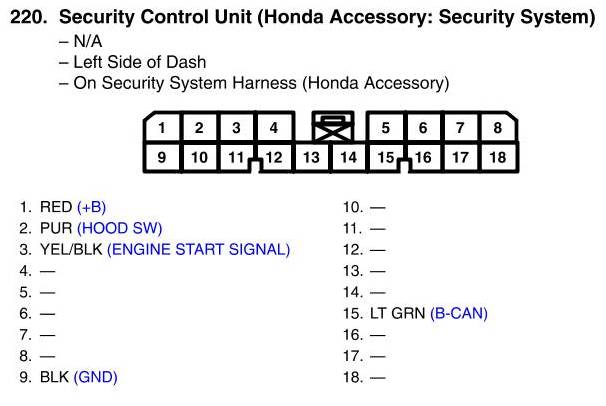

View 220 - Security Control Unit Connector View (Honda Accessory: Security System)
View 220 - Security Control Unit Connector View (Honda Accessory: Security System)
