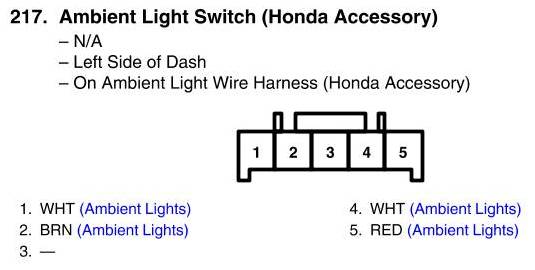

View 217 - Ambient Light Switch Connector View (Honda Accessory)
View 217 - Ambient Light Switch Connector View (Honda Accessory)
