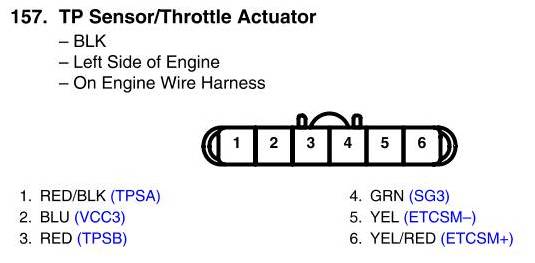

View 157 - TP Sensor/Throttle Actuator Connector View
View 157 - TP Sensor/Throttle Actuator Connector View
