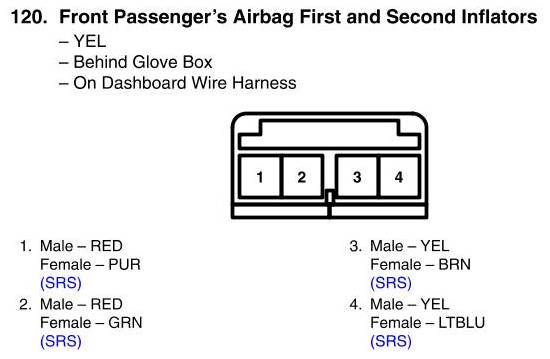

View 120 - Front Passenger's Airbag First And Second Inflators Connector View
View 120 - Front Passenger's Airbag First And Second Inflators Connector View
