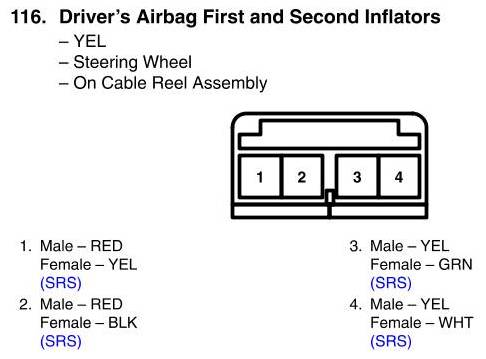

View 116 - Driver's Airbag First And Second Inflators Connector View
View 116 - Driver's Airbag First And Second Inflators Connector View
