Glove Compartment Lock: Service and Repair

Glove Box Striker Replacement

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Technician Safety Information before doing repairs or service.

NOTE: Take care not to scratch the dashboard or its related parts.

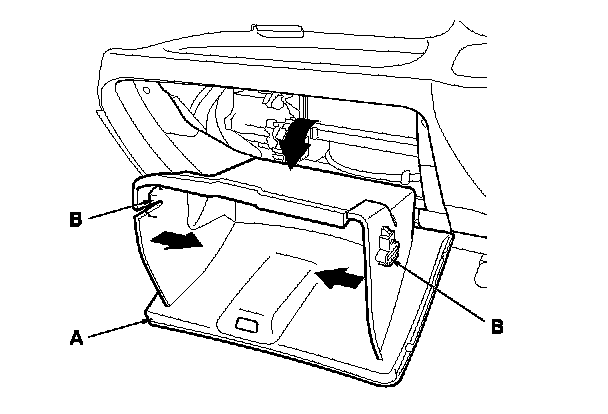

1. While holding the glove box (A), release the glove box stops (B) on each side from the dashboard by pushing them inward, then lower the glove box.

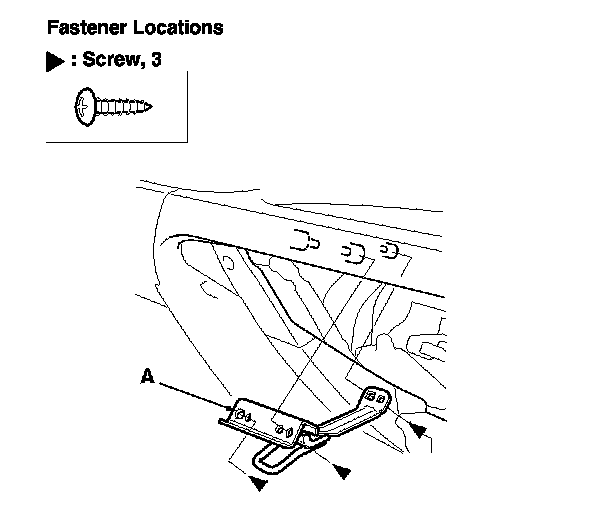

2. Remove the screws, then remove the glove box striker (A).

3. Install the glove box striker in the reverse order of removal.
