Drink Holders: Service and Repair

Beverage Holder Removal/Installation

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the dashboard or its related parts.

1. Remove the dashboard/steering hanger beam. Dashboard/Steering Hanger Beam Removal/Installation

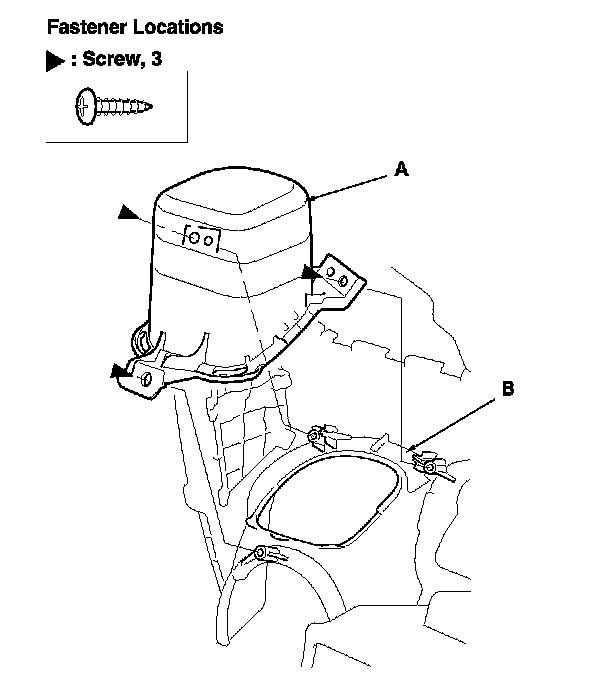

2. Remove the screws, then remove the beverage holders (A) from both ends of the dashboard (B).

3. Install the beverage holders in the reverse order of removal.
