Underbody Cover: Service and Repair

Rear Undercover Replacement

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the rear bumper or the body.

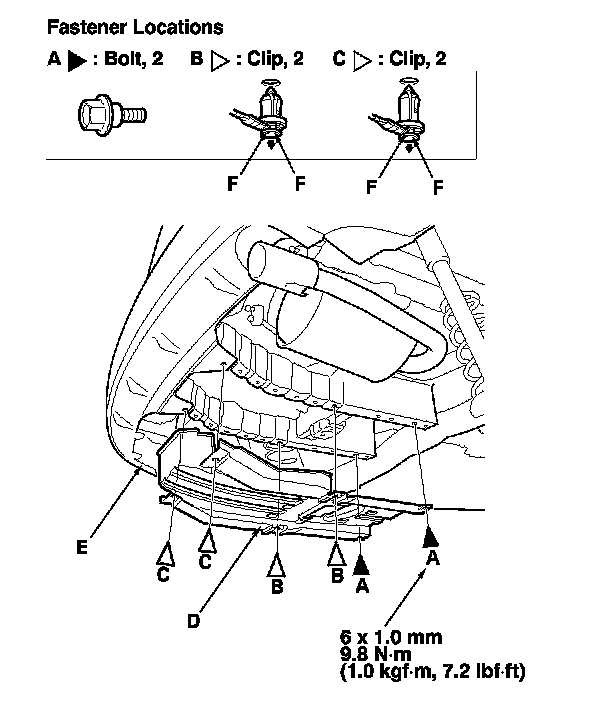

1. Remove the bolts (A) and the clips (B, C) that secure the rear undercover (D) and the rear bumper (E) to the body, then remove the undercover.
NOTE: To release the clips, pry up on the center pin at the notch (F).

2. Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
