Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2009
>>
Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

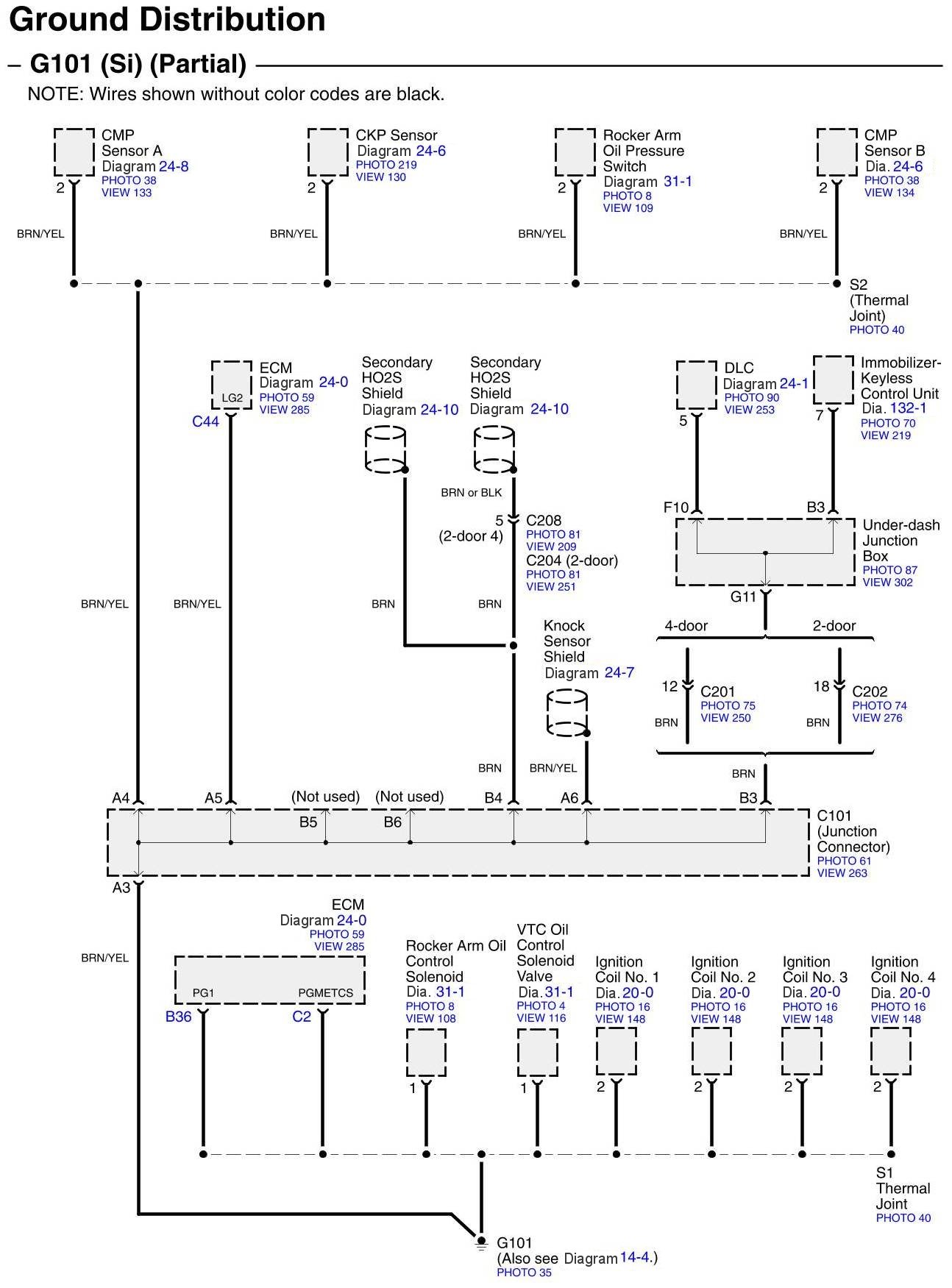

Diagram Set 14 (Ground Distribution)
>>
G101
G101
Diagram 14-3:
Diagram 14-4:
