Intermediate Shaft Reassembly

Intermediate Shaft Reassembly

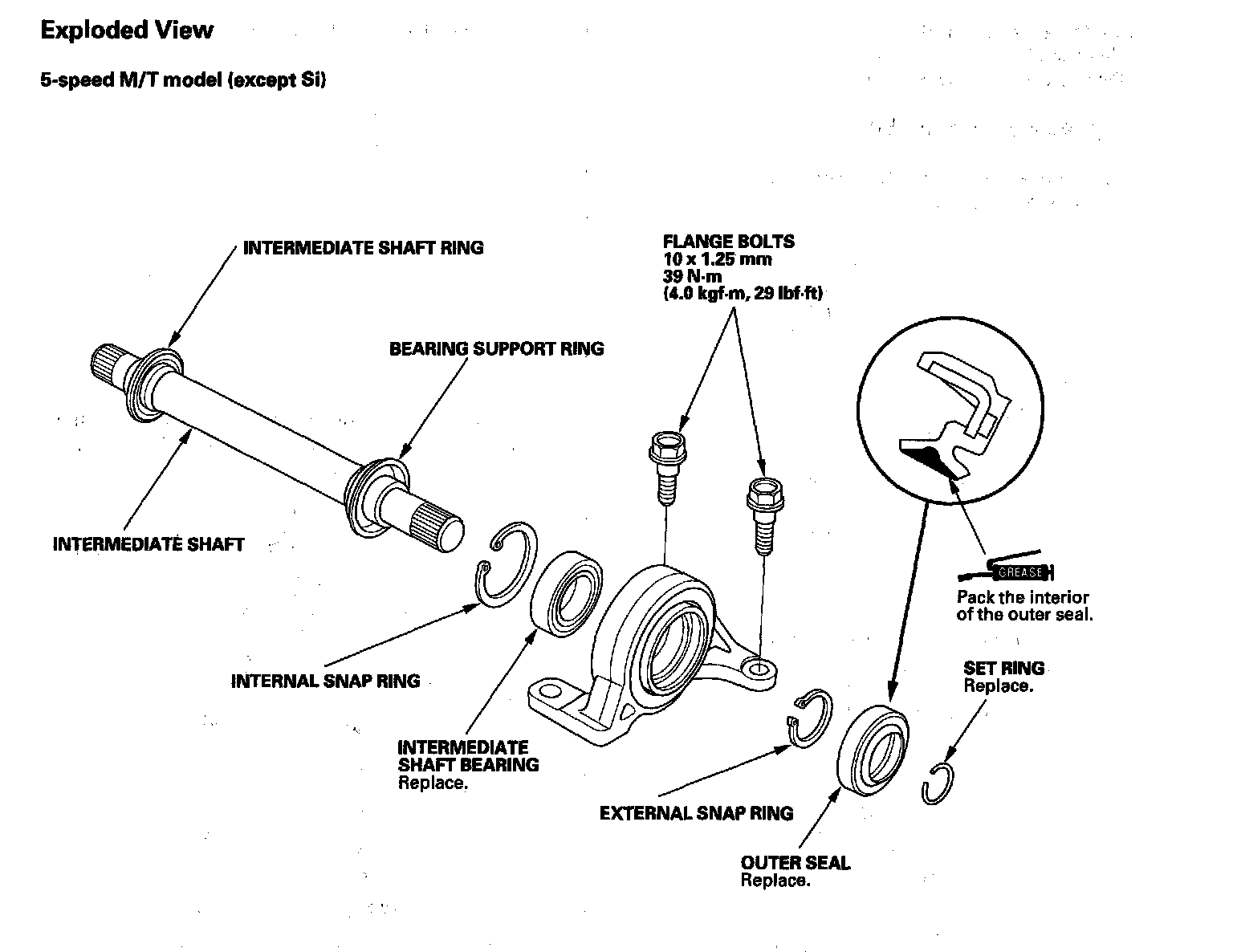

Exploded View 5-speed M/T model (except Si)





Special Tools Required

- Oil seal driver, 64 mm 07GAD-PH70201
- Support base attachment 07JAF-SH20400
- Bearing driver attachment, 52 x 55 mm 07746-0010400
- Inner bearing driver attachment, 35 mm 07746-0030400
- Driver handle, 15 x 135L 07749-0010000
- Support base 07965-SD90100

NOTE: Refer to the Exploded View, as needed, during this procedure.

5-speed M/T Model (Except Si)

1. Clean the disassembled parts with solvent, and dry them with compressed air.
NOTE: Do not wash the rubber parts with solvent.

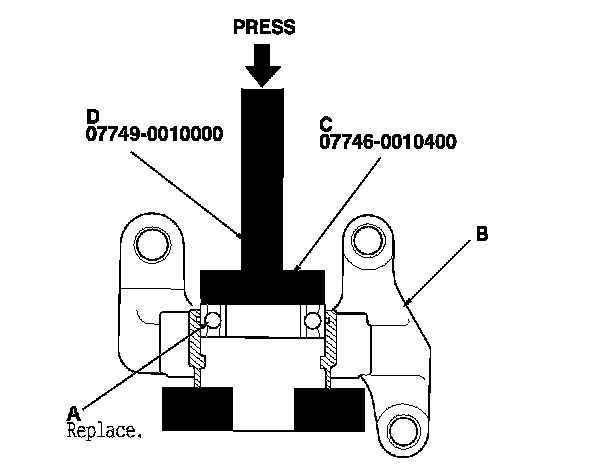

2. Press the new intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm bearing driver attachment (C), the 15 x 135L driver handle (D), and a press.

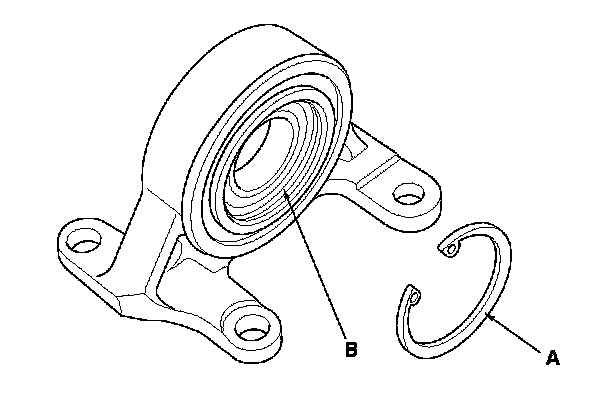

3. Seat the internal snap ring (A) into the groove (B) of the bearing support.

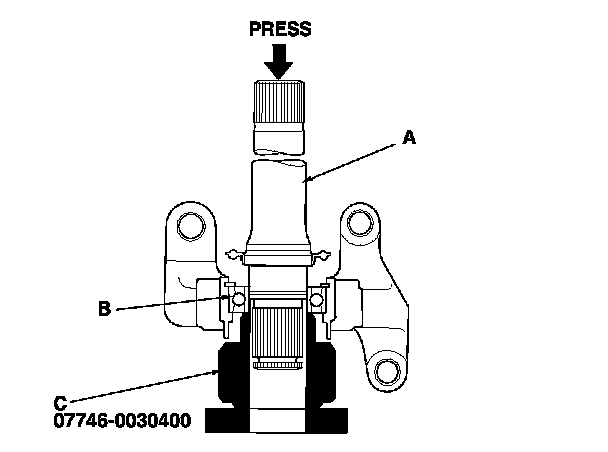

4. Press the intermediate shaft (A) into the shaft bearing (B) using the 35 mm inner bearing driver attachment (C) and a press.






5. Install the external snap ring (A) into the groove (B) of the intermediate shaft.

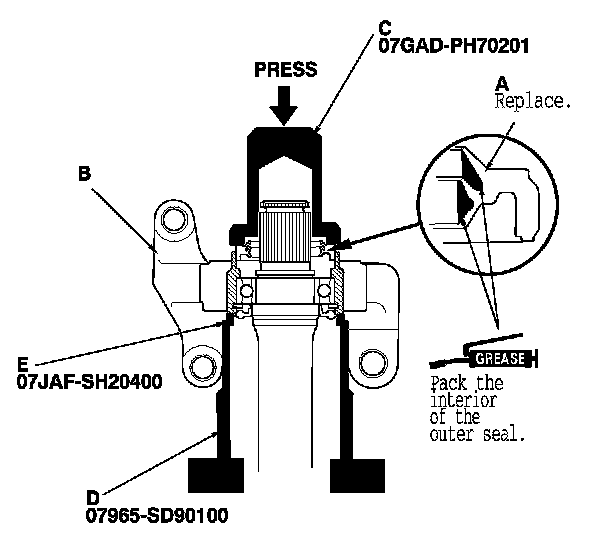

6. Install the new outer seal (A) into the bearing support (B) using the 64 mm oil seal driver (C), the half shaft base (D), the support base attachment (E), and a press.
