Drive Belt Idler Pulley Removal/Installation

Drive Belt Idler Pulley Removal/Installation

EPS model

1. Remove the drive belt. Drive Belt Removal/Installation

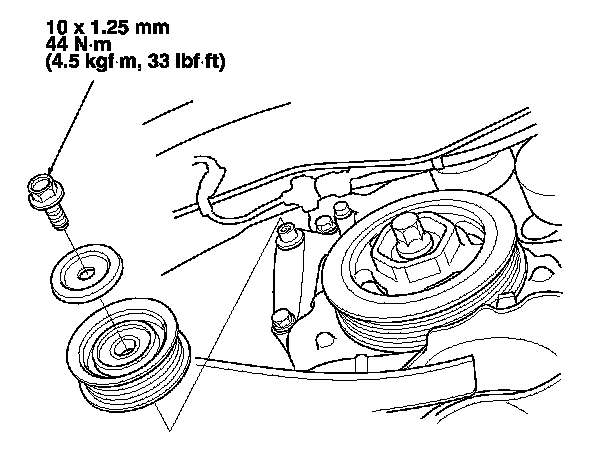

2. Remove the idler pulley.

3. Install the idler pulley in the reverse order of removal.
