Power Trunk / Liftgate Lock Switch
>>

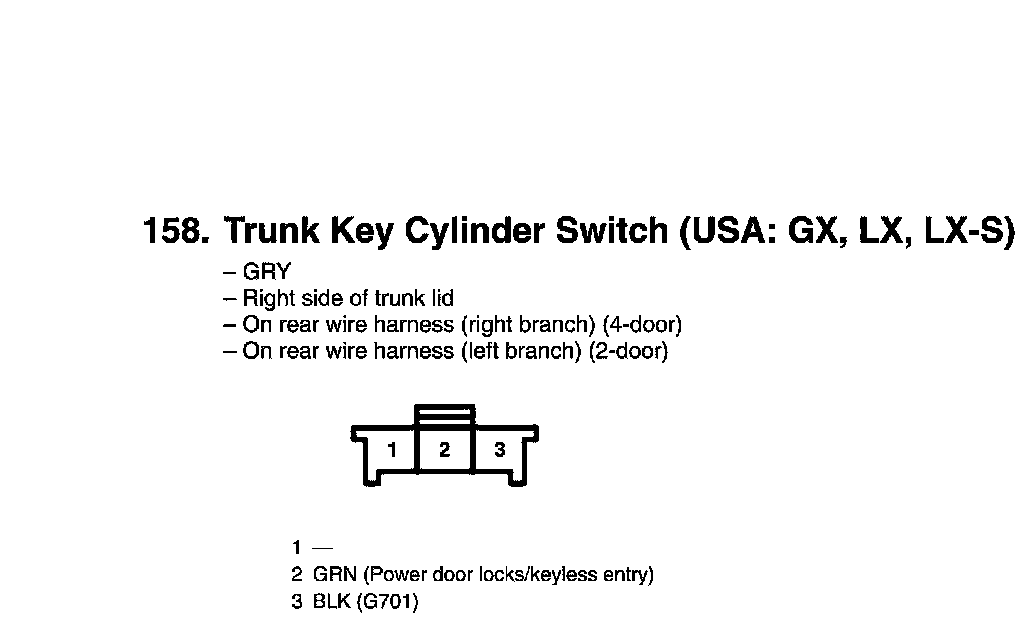

Trunk Key Cylinder Switch Connector View (USA)
Trunk Key Cylinder Switch Connector View (USA)
