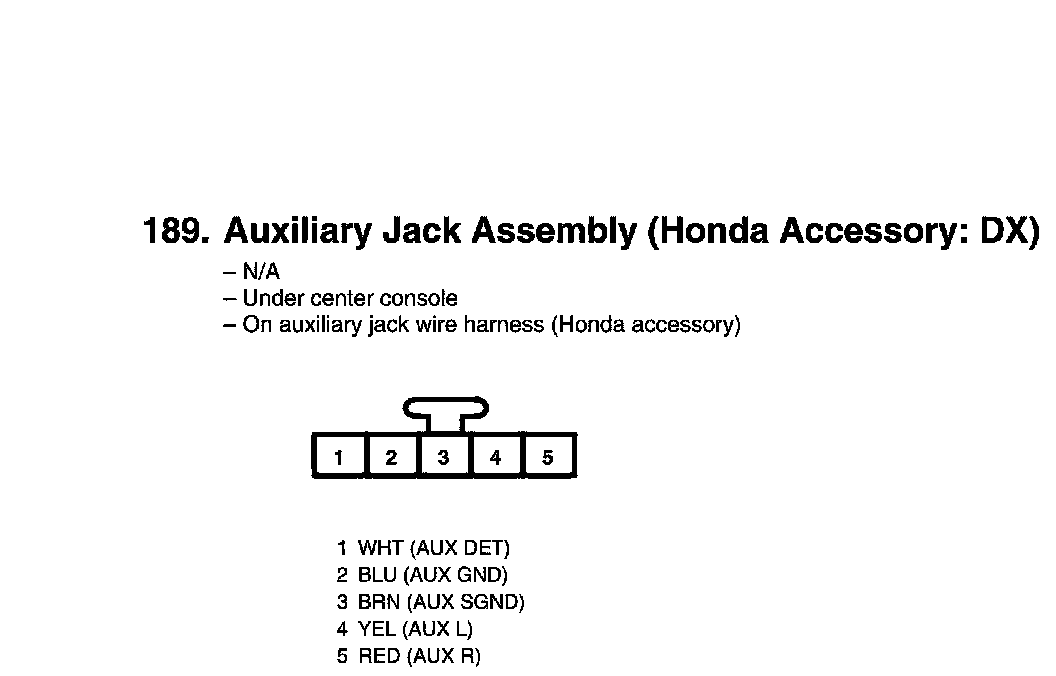

View 189 Auxiliary Jack Assembly Connector View (Honda Accessory)
View 189 Auxiliary Jack Assembly Connector View (Honda Accessory)
