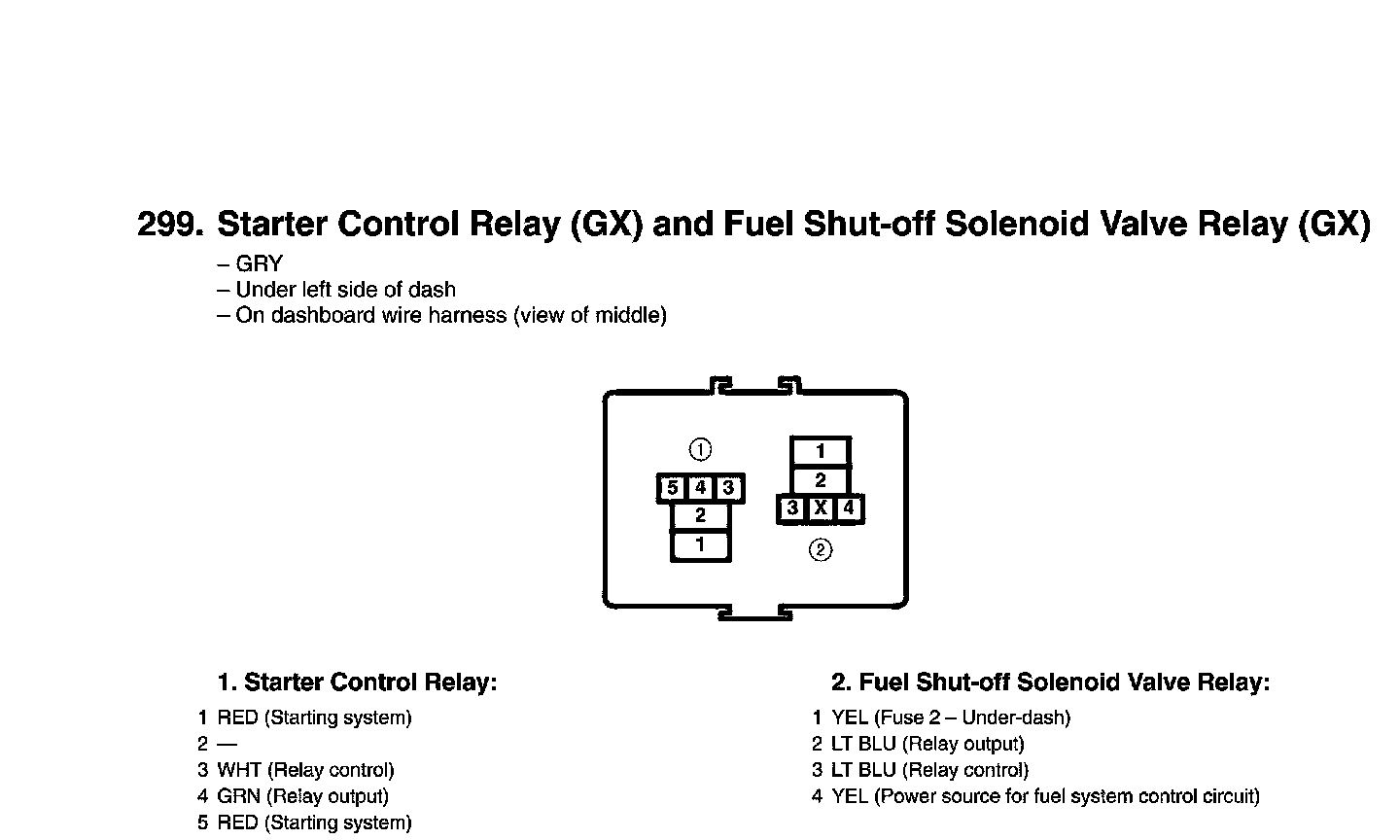

View 299 Starter Control Relay and Fuel Shut-Off Solenoid Valve Relay Connector View
View 299 Starter Control Relay and Fuel Shut-Off Solenoid Valve Relay Connector View
