Body Emblem: Service and Repair

Emblem/Sticker Replacement

NOTE: When removing the stickers, take care not to scratch the body.

1. Clean the body surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

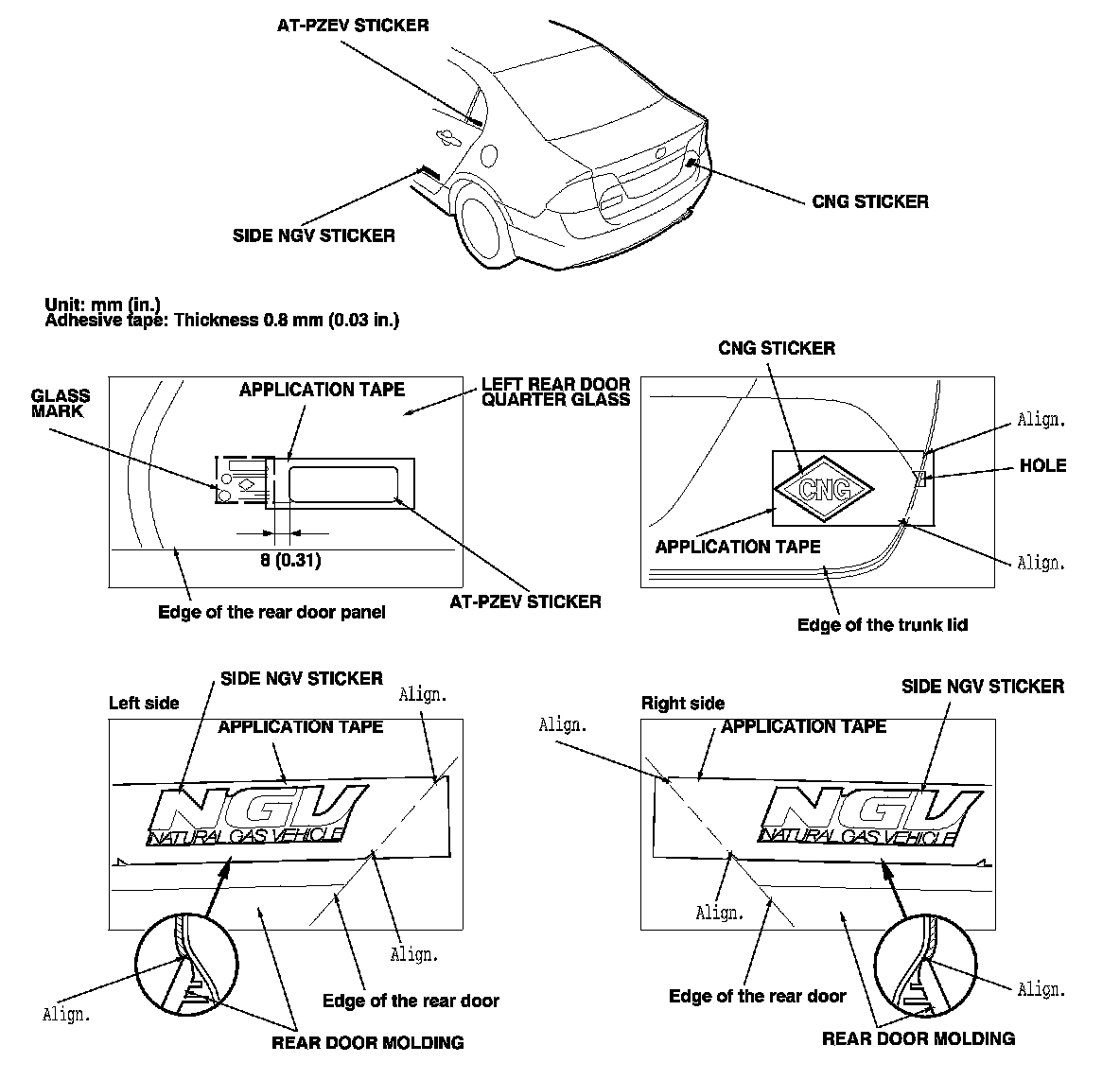

2. Apply the stickers where shown:
- When installing the AT-PZEV sticker on the inside surface of the left rear door quarter glass, align the sticker with the edge of the glass mark as shown, then press the sticker into place, and remove the application tape.

- When installing the side NGV stickers on both rear doors, align the application tape with the edges of the rear door and rear door molding as shown, then press the sticker into place, and remove the application tape.

- When installing the CNG sticker on the trunk lid, align the application tape with the edge of the trunk lid as shown, then press the sticker into place, and remove the application tape.
