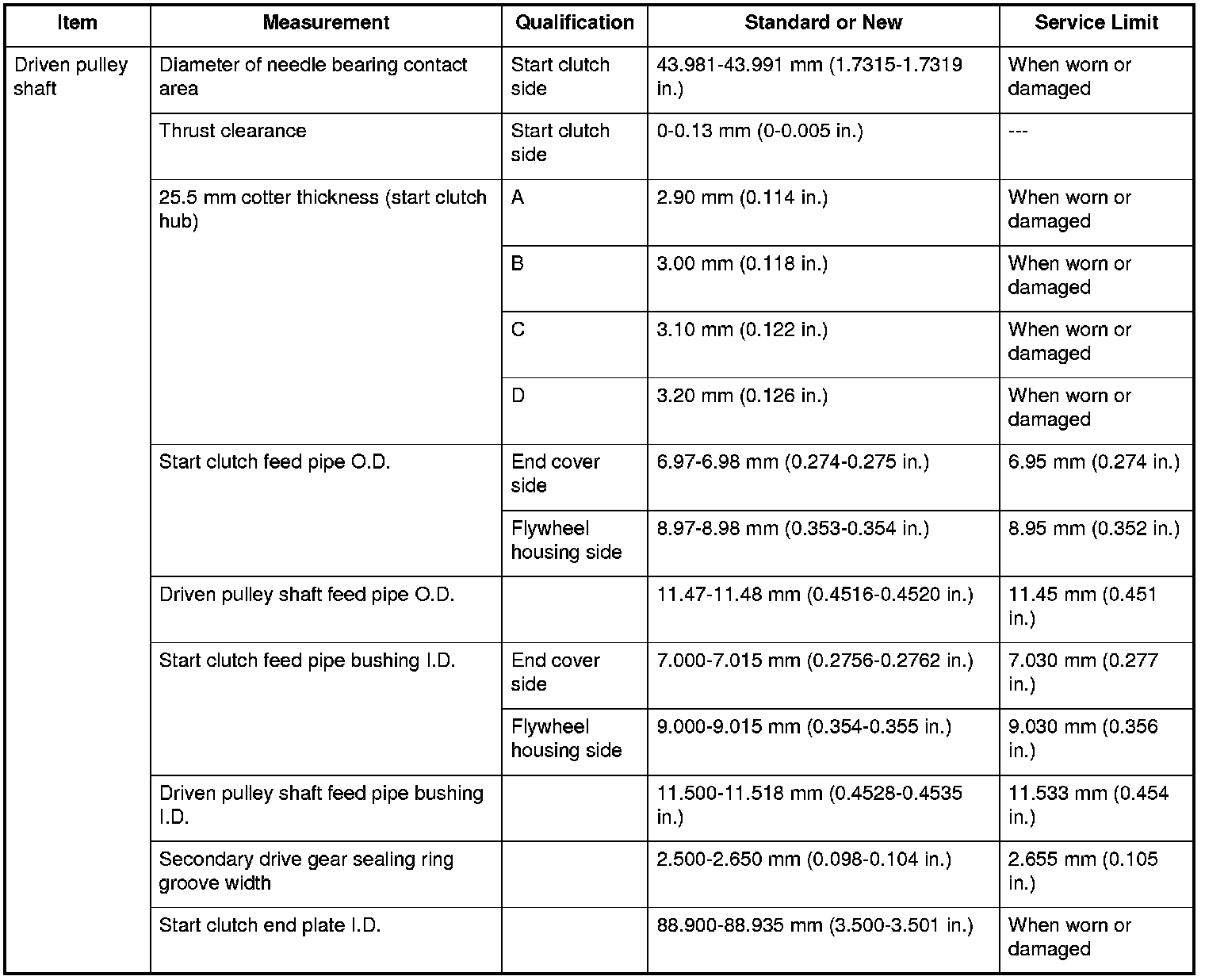

Driven Pulley Shaft Specifications
Driven Pulley Shaft Specifications
Driven pulley shaft Specifications
Driven pulley shaft
