Honda
>>
2009
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Speed Sensor, CVT
>>

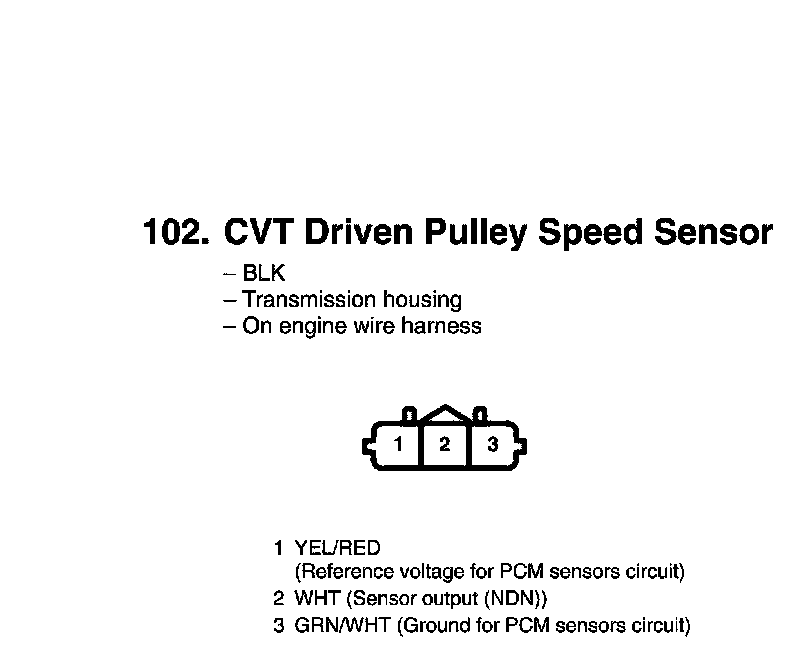

CVT Driven Pulley Speed Sensor Connector View
CVT Driven Pulley Speed Sensor Connector View
