Transmission Speed Sensor, CVT
>>

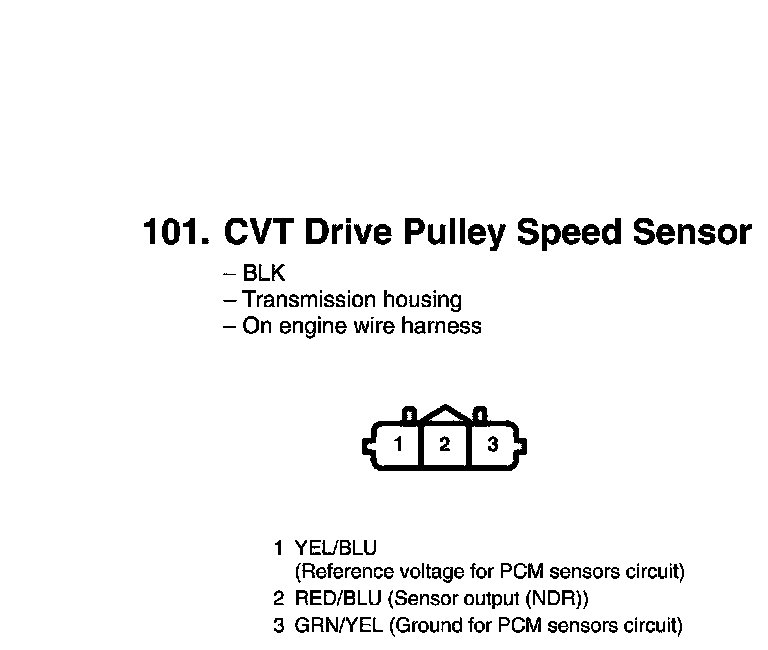

CVT Drive Pulley Speed Sensor Connector View
CVT Drive Pulley Speed Sensor Connector View
