Intermediate Shaft Disassembly (A/T)

Intermediate Shaft Disassembly

Special Tools Required
- Support base attachment, 70 mm 07LAF-SM40300
- Oil seal driver, 44.5 mm 07947-SB00100
- Support base, 73 x 78/82.6 mm 07965-SD90100

A/T Model

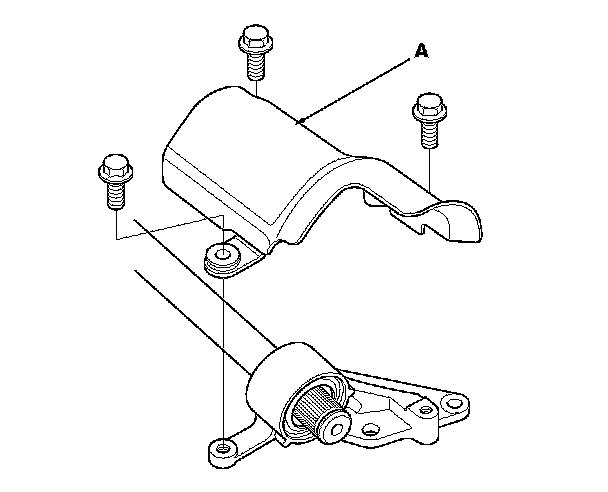

1. Remove the heat shield (A).

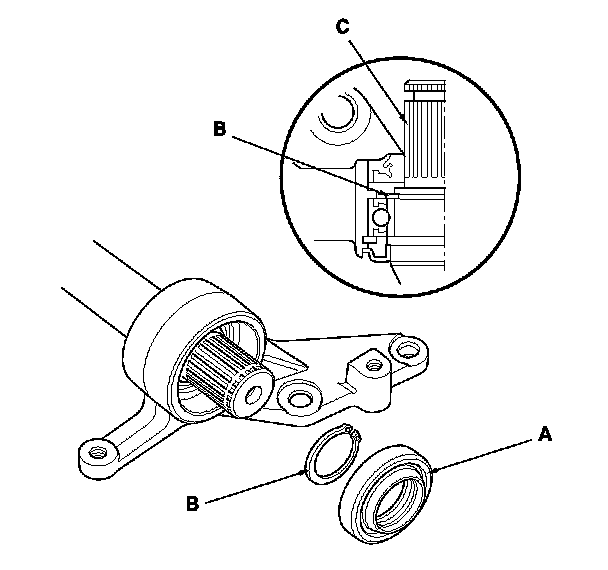

2. Remove the oil seal (A) and the external snap ring (B) from the intermediate shaft (C).

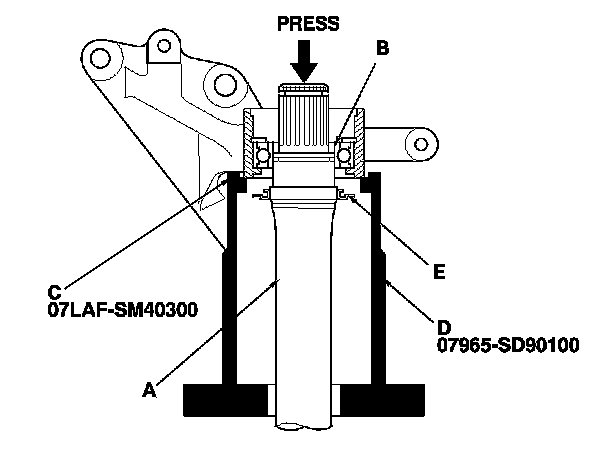

3. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the 70 mm support base attachment (C), the 73 x 78/82.6 mm support base (D), and a press. Be careful not to damage the bearing support ring (E) on the intermediate shaft during disassembly.

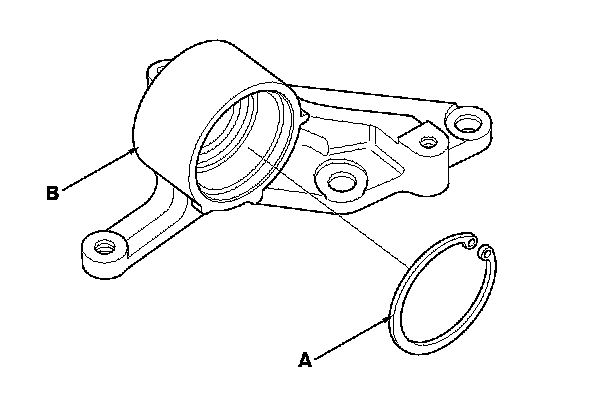

4. Remove the internal snap ring (A) from the bearing support (B).

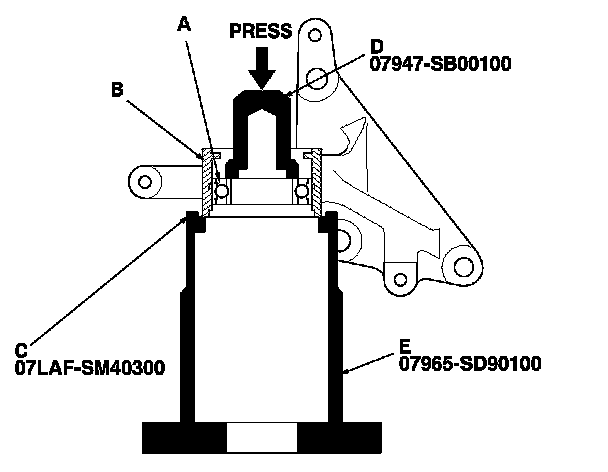

5. Press the intermediate shaft bearing (A) out of the bearing support (B) using the 70 mm support base attachment (C), the 44.5 mm oil seal driver (D), the 73 x 78/82.6 mm support base (E), and a press.
