Transmission Housing Intermediary Shaft Bearing Replacement

Transmission Housing Intermediary Shaft Bearing Replacement

Special Tools Required
- Bearing remover shaft set, 20 mm 07936-3710600
- Bearing remover shaft handle 07936-3710100
- Sliding hammer weight 07936-371020A
- Driver 07749-0010000
- Attachment, 37 x 40 mm 07746-0010200

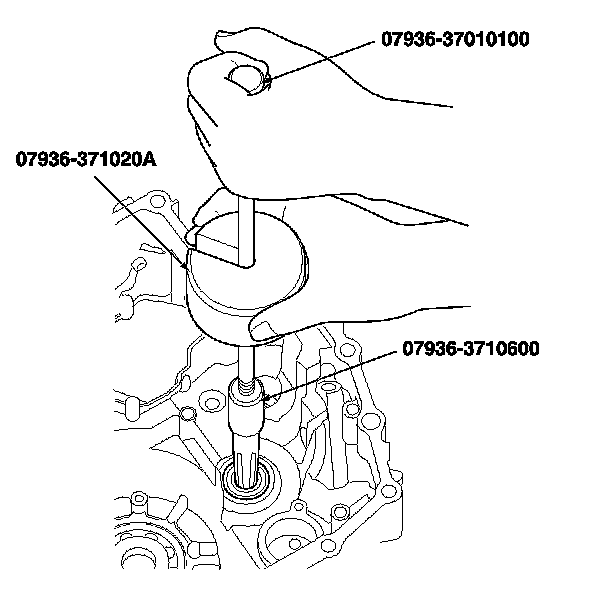

1. Remove the intermediary shaft bearing from the transmission housing using the 20 mm bearing remover shaft set, the bearing shaft handle, and the sliding hammer weight.

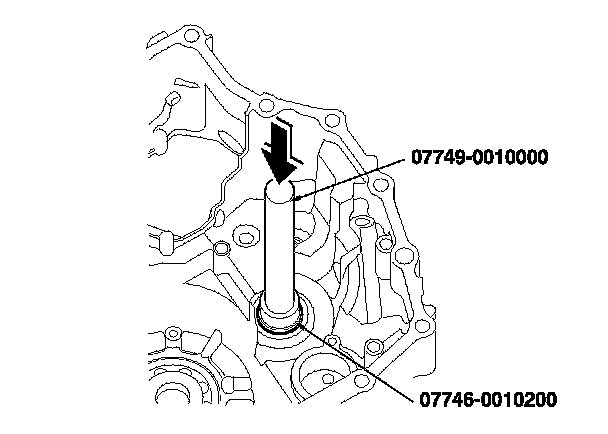

2. Install a new bearing until it bottoms in the transmission housing using the driver and the 37 x 40 mm attachment.
