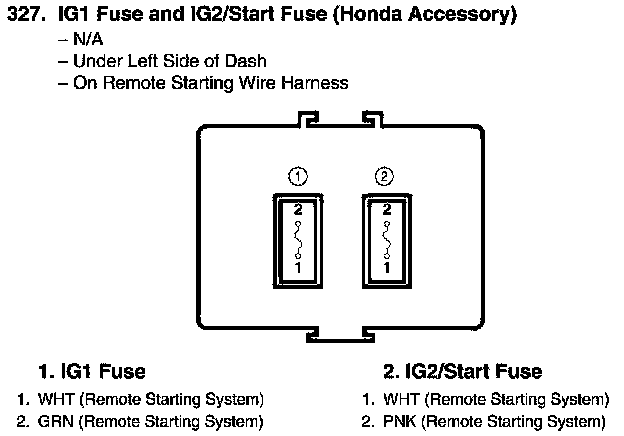

IG1 Fuse and IG2/Start Fuse Connector View (Honda Accessory: A/T)
IG1 Fuse and IG2/Start Fuse Connector View (Honda Accessory: A/T)
