Home
>>
Honda
>>
2009
>>
Accord V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Automatic Transmission
Automatic Transmission
Automatic Transmission

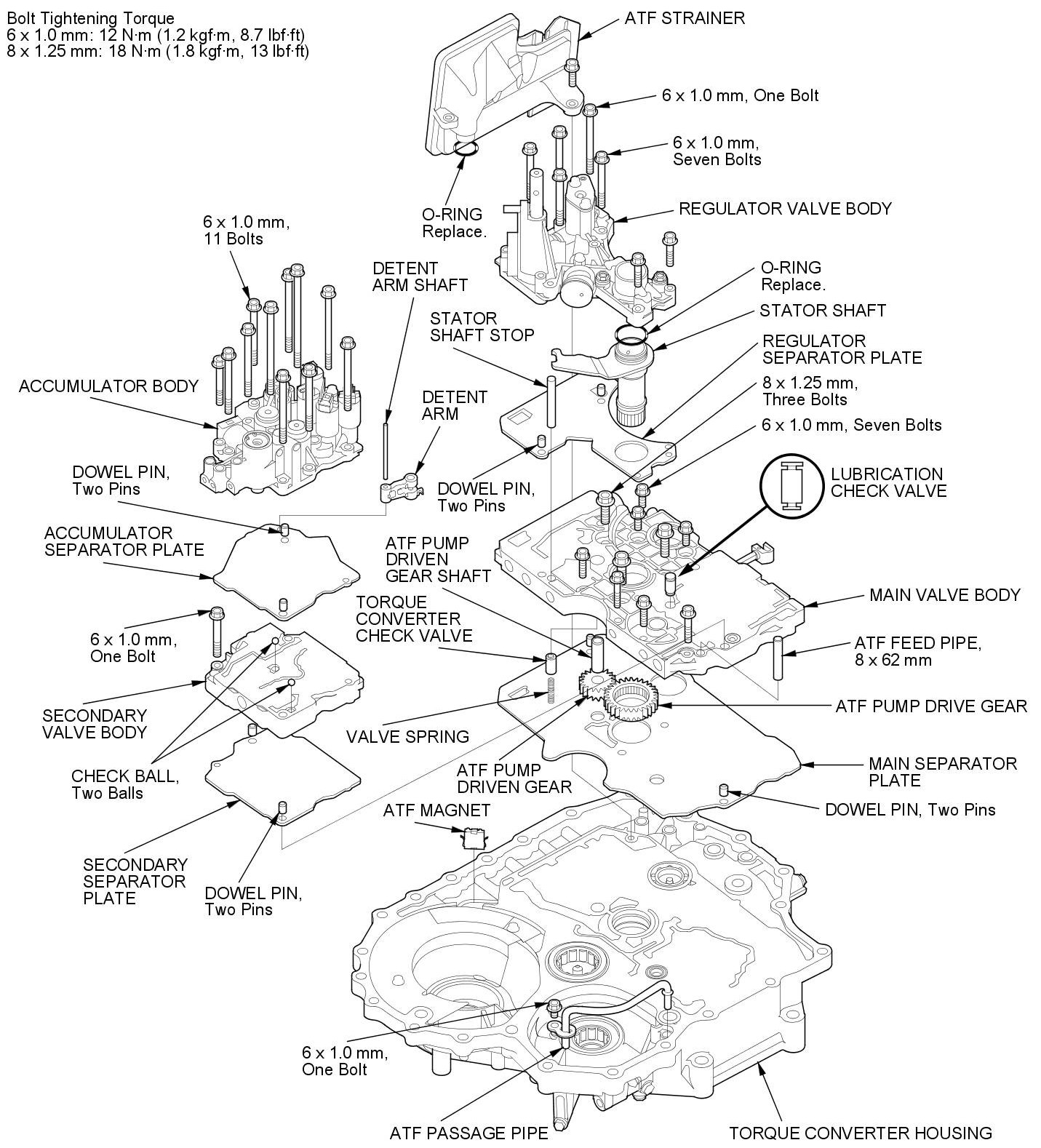

Exploded View
