Rear Fender Liner: Service and Repair

Rear Inner Fender Replacement

NOTE: Take care not to scratch the rear bumper and the body.

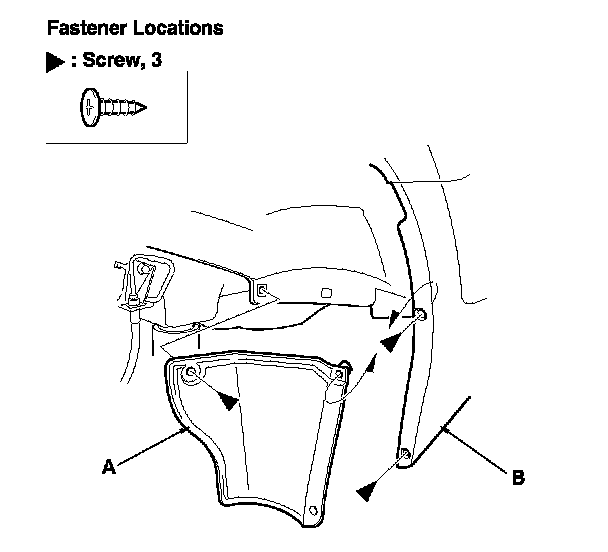

1. Remove the screws, then remove the rear fender cover (A) from the rear bumper (B) and the body.

2. Install the fender cover in the reverse order of removal.
