Cabin Noise Sensor: Service and Repair

Active Noise Cancellation Microphone Removal/Installation

Front

1. Remove the roof console. Service and Repair

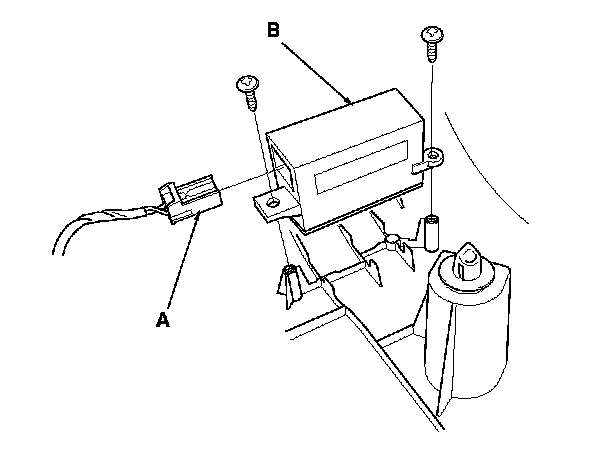

2. Disconnect the connector (A), then remove the screws and the active noise cancellation microphone (B).

3. Install the microphone in the reverse order of removal.






Rear

1. Remove the rear shelf. Service and Repair

2. Disconnect the connector (A), then remove the screws and the active noise cancellation microphone (B).

3. Install the microphone in the reverse order of removal.
